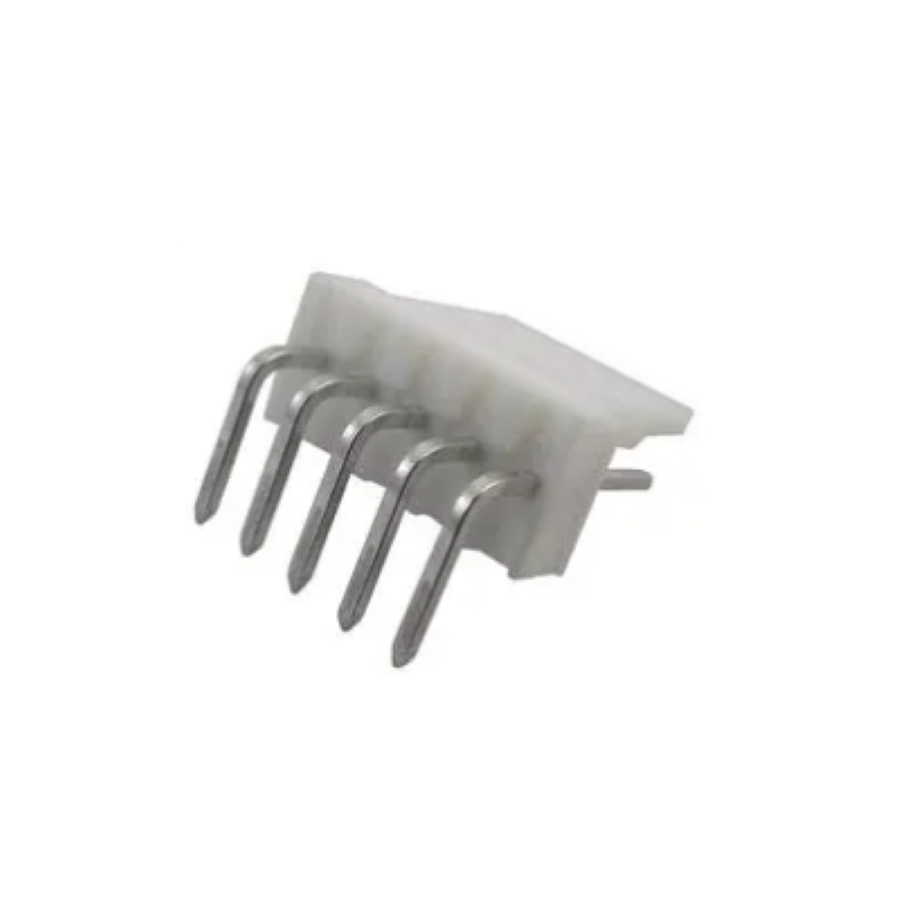

22-05-7058
Manufacturer:
Molex
Mfr.Part #:
22-05-7058
Datasheet:
Description:
Headers and Wire Housings Through Hole Locking Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 7.52 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Height | 7.9 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 7.7 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 2.5 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 5 |
| Hole Diameter | 1.02 mm |
| Number of Poles | 5 |
| Number of Lines | 1 |
| Connector Type | Locking |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 6.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MX |
| Termination Post Length | 3.5 mm |
