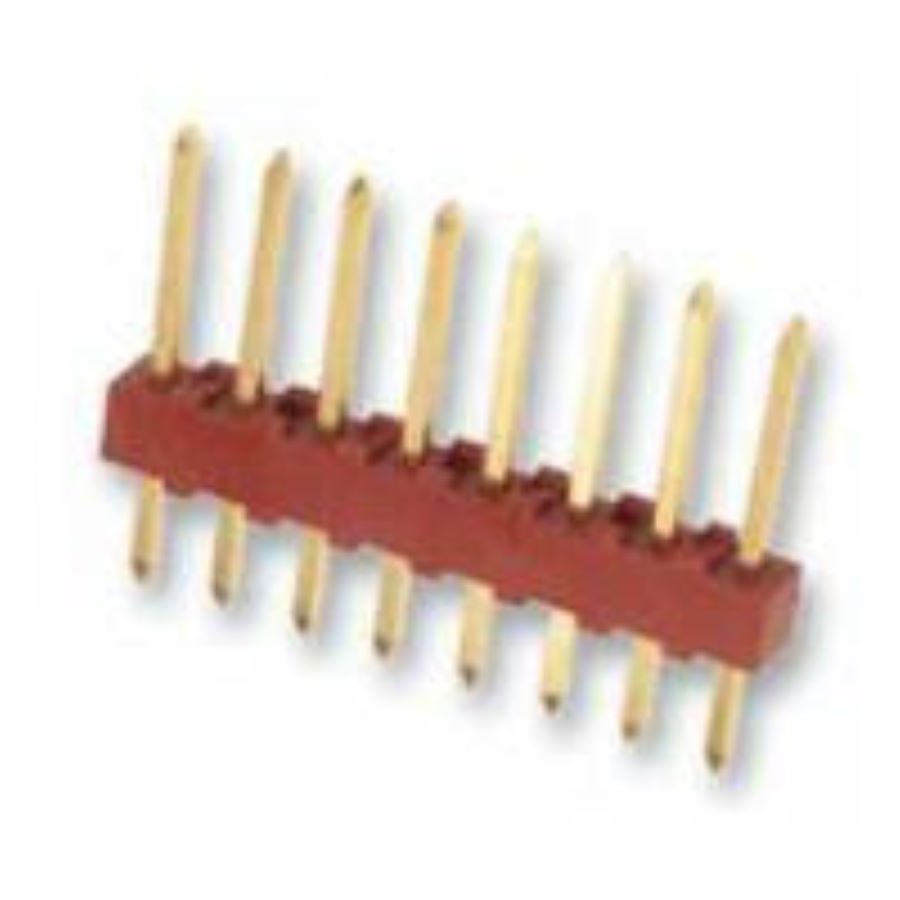

22-10-2081
Manufacturer:
Molex
Mfr.Part #:
22-10-2081
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 20.1 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 8 |
| Height | 3.3 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 7.493 mm |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | US |
| Termination Post Length | 3.43 mm |
Stock: 142
Distributors
pcbx
pcbxUnit Price$0.80706
Ext.Price$0.80706
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.80706 | $0.80706 |
| 10 | $0.68223 | $6.82230 |
| 25 | $0.65060 | $16.26500 |
| 50 | $0.63863 | $31.93150 |
| 100 | $0.61384 | $61.38400 |
| 300 | $0.55550 | $166.65000 |
| 500 | $0.50270 | $251.35000 |
| 1000 | $0.44713 | $447.13000 |
