22-11-2022
Manufacturer:
Molex
Mfr.Part #:
22-11-2022
Datasheet:
Description:

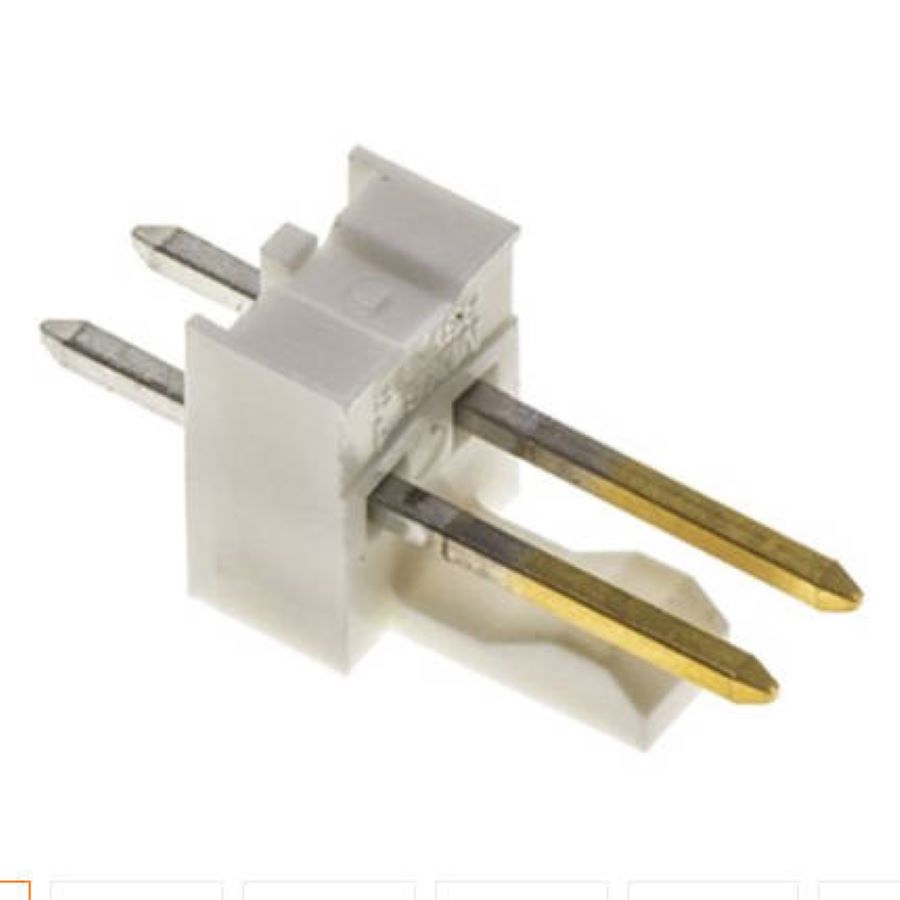

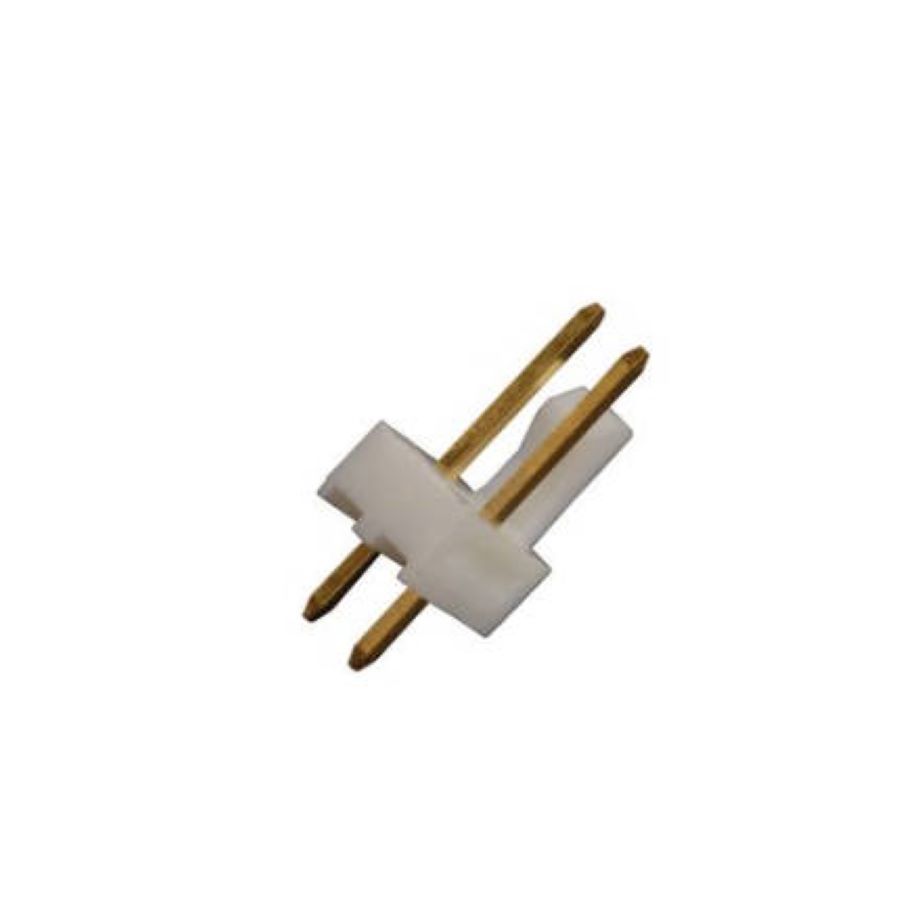

Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 95 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 9.02 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 20.29 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 19269
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.17611 | $1.76110 |
| 50 | $0.14674 | $7.33700 |
| 100 | $0.12226 | $12.22600 |
| 500 | $0.11385 | $56.92500 |
| 1000 | $0.10601 | $106.01000 |
