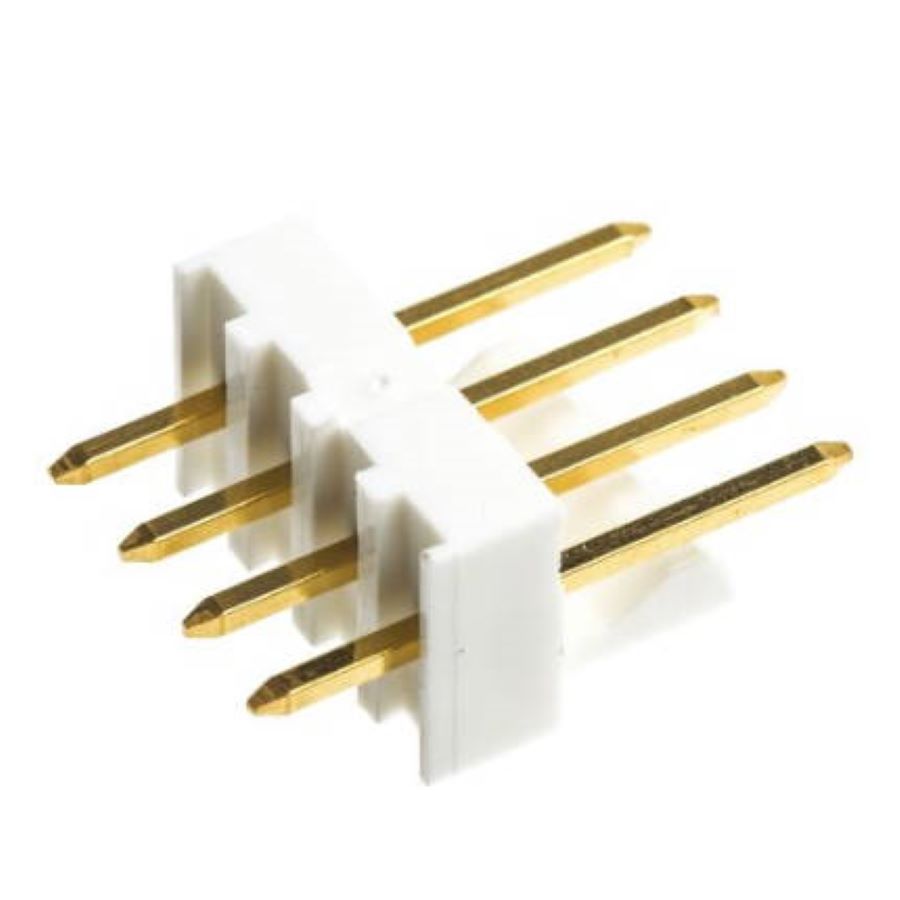

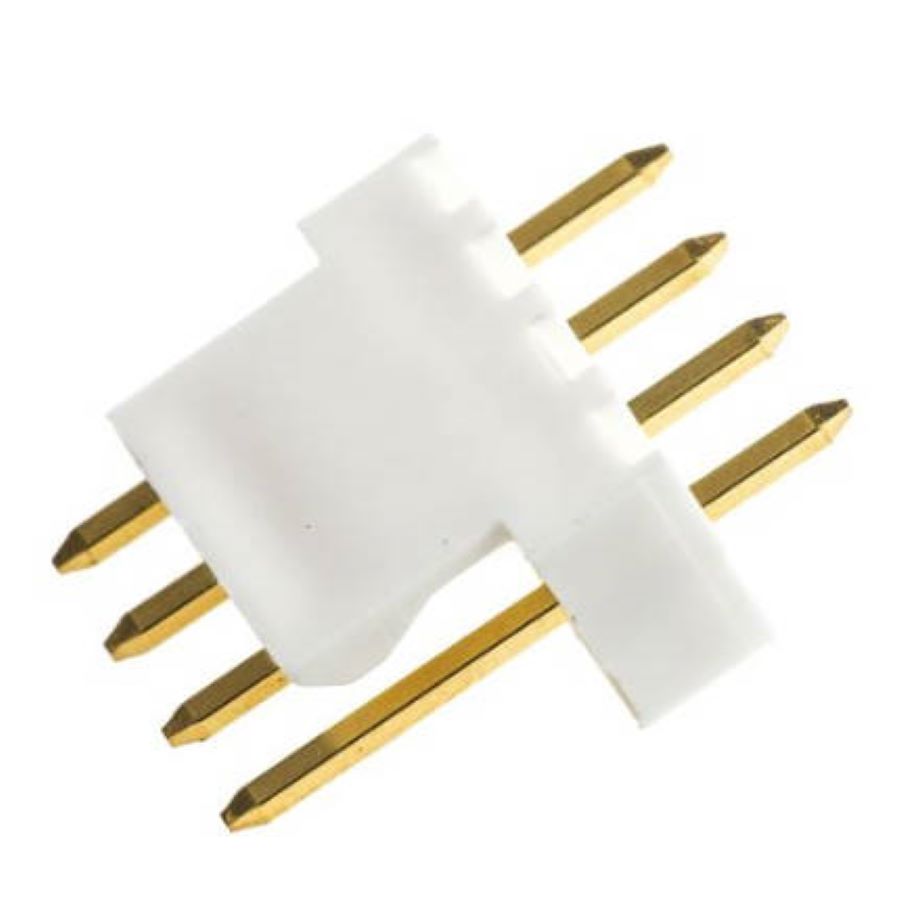

22-11-2042
Manufacturer:
Molex
Mfr.Part #:
22-11-2042
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 95 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 20.09 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 11054
Distributors
pcbx
pcbxUnit Price$0.31290
Ext.Price$0.31290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31290 | $0.31290 |
| 10 | $0.24194 | $2.41940 |
| 25 | $0.23596 | $5.89900 |
| 50 | $0.22680 | $11.34000 |
| 100 | $0.21800 | $21.80000 |
| 300 | $0.20754 | $62.26200 |
| 500 | $0.19758 | $98.79000 |
| 1000 | $0.18809 | $188.09000 |
| 3000 | $0.18159 | $544.77000 |
| 5000 | $0.17532 | $876.60000 |
| 10000 | $0.16927 | $1692.70000 |
