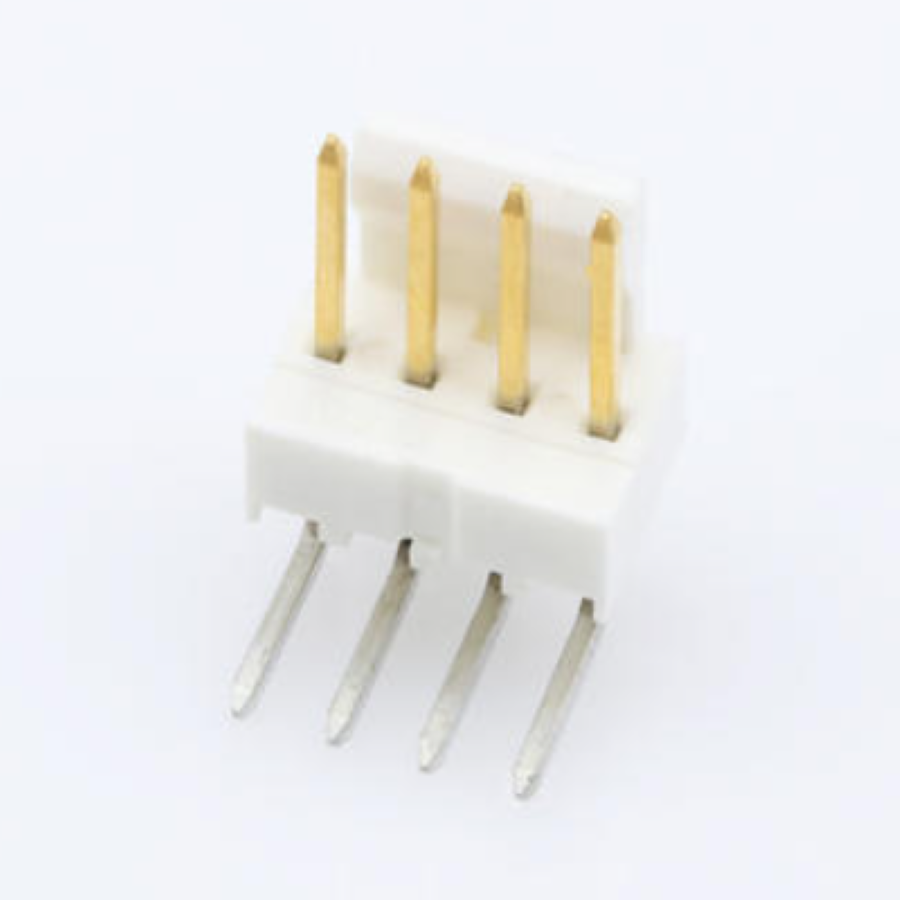

22-12-4032
Manufacturer:
Molex
Mfr.Part #:
22-12-4032
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass, Gold |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Working Voltage | 250 V |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Gold |
| Mating Post Length | 6.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MX |
| Termination Post Length | 3.81 mm |
Stock: 803
Distributors
pcbx
pcbxUnit Price$0.53177
Ext.Price$0.53177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53177 | $0.53177 |
| 10 | $0.45311 | $4.53110 |
| 25 | $0.41082 | $10.27050 |
| 50 | $0.37247 | $18.62350 |
| 100 | $0.33770 | $33.77000 |
| 300 | $0.30604 | $91.81200 |
| 500 | $0.27735 | $138.67500 |
| 1000 | $0.25135 | $251.35000 |
