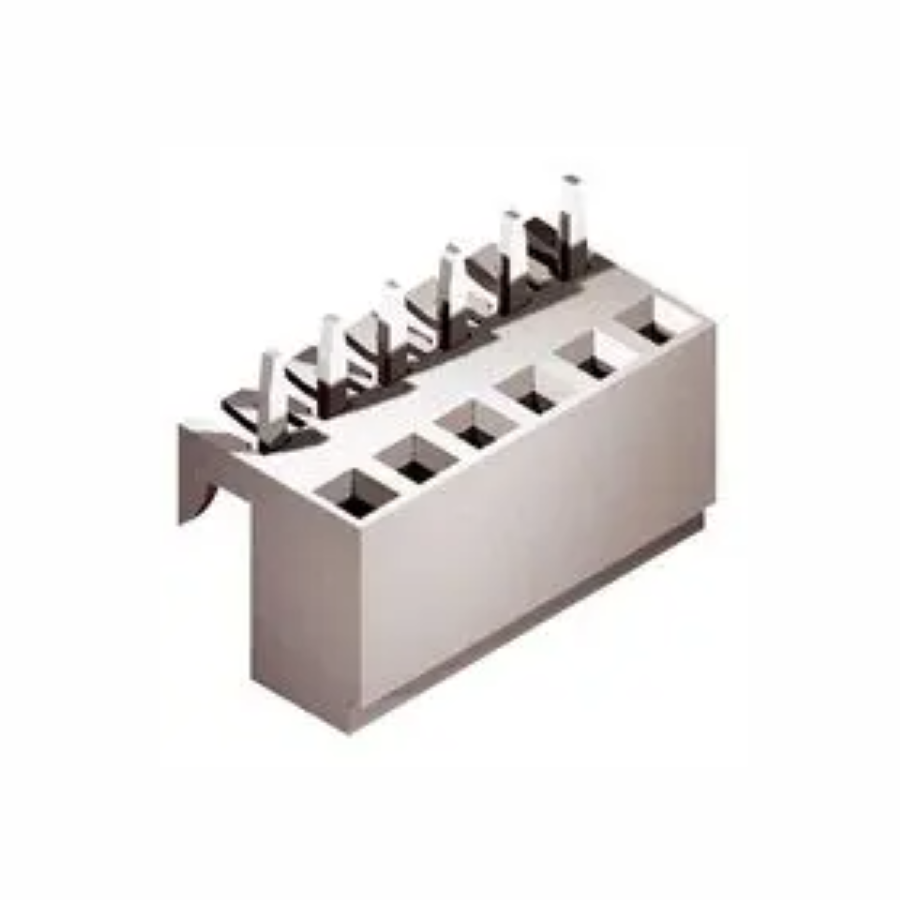

22-14-2084
Manufacturer:
Molex
Mfr.Part #:
22-14-2084
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Bottom Entry Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.22 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 7.9 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Depth | 7.7 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Max Current Rating | 2.5 A |
| Number of Circuits | 8 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Socket (Female) |
| Number of Contacts | 8 |
| Connector Type | Receptacle, Bottom Entry |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.35 mm |
