22-15-2066
Manufacturer:
Molex
Mfr.Part #:
22-15-2066
Datasheet:
Description:

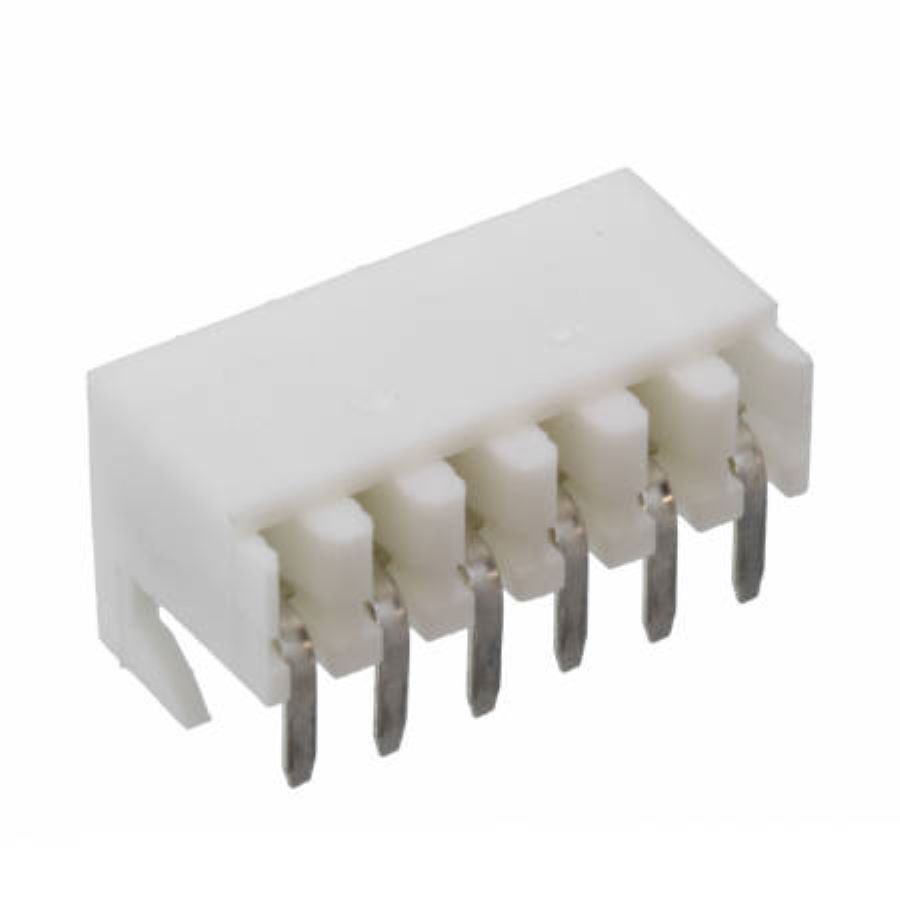

Headers and Wire Housings Through Hole Receptacle Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.14 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Depth | 7.9 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | White |
| Gender | Socket (Female) |
| Number of Contacts | 6 |
| Connector Type | Receptacle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | US |
| Termination Post Length | 3.35 mm |
Stock: 849
Distributors
pcbx
pcbxUnit Price$0.30692
Ext.Price$0.30692
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30692 | $0.30692 |
| 10 | $0.26076 | $2.60760 |
| 25 | $0.26062 | $6.51550 |
| 50 | $0.26048 | $13.02400 |
| 100 | $0.26034 | $26.03400 |
| 300 | $0.26020 | $78.06000 |
| 500 | $0.26006 | $130.03000 |
| 1000 | $0.25990 | $259.90000 |
