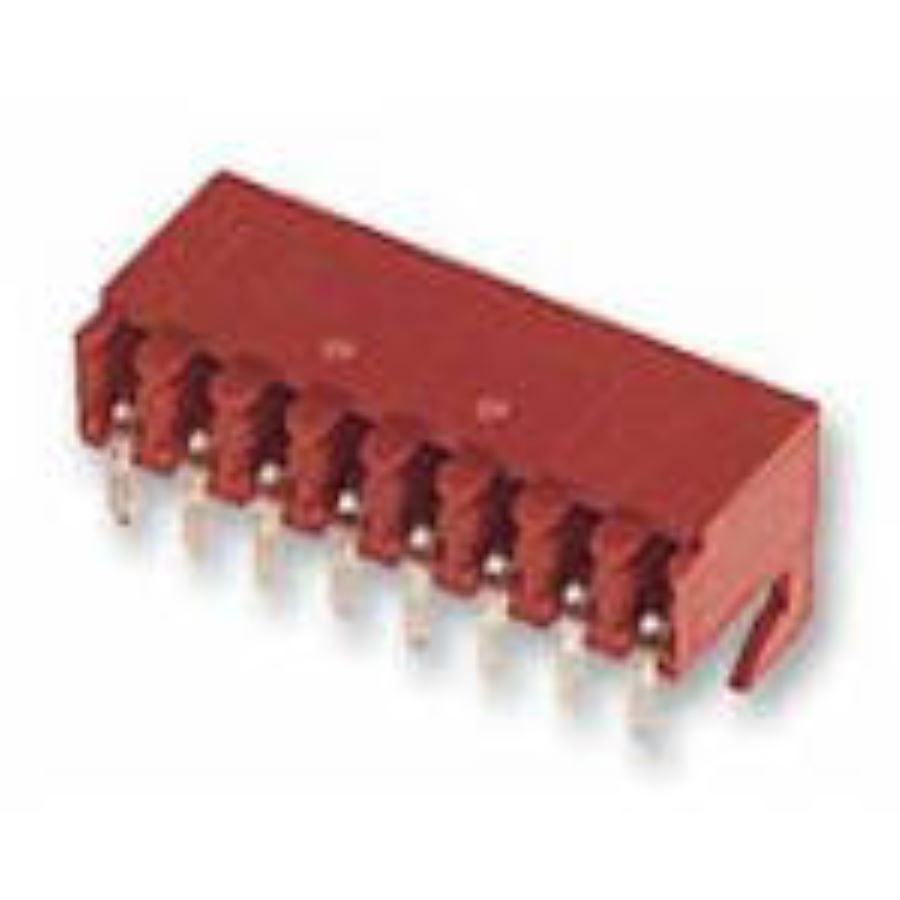

22-16-2080
Manufacturer:
Molex
Mfr.Part #:
22-16-2080
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.2 mm |
| Width | 7.9 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.7 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | White |
| Gender | Socket (Female) |
| Number of Contacts | 8 |
| Connector Type | Receptacle |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | US |
| Termination Post Length | 3.35 mm |
Stock: 379
Distributors
pcbx
pcbxUnit Price$0.96350
Ext.Price$0.96350
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96350 | $0.96350 |
| 10 | $0.81390 | $8.13900 |
| 25 | $0.75063 | $18.76575 |
| 50 | $0.64462 | $32.23100 |
| 100 | $0.62581 | $62.58100 |
| 300 | $0.58926 | $176.77800 |
| 500 | $0.55485 | $277.42500 |
| 1000 | $0.49671 | $496.71000 |
