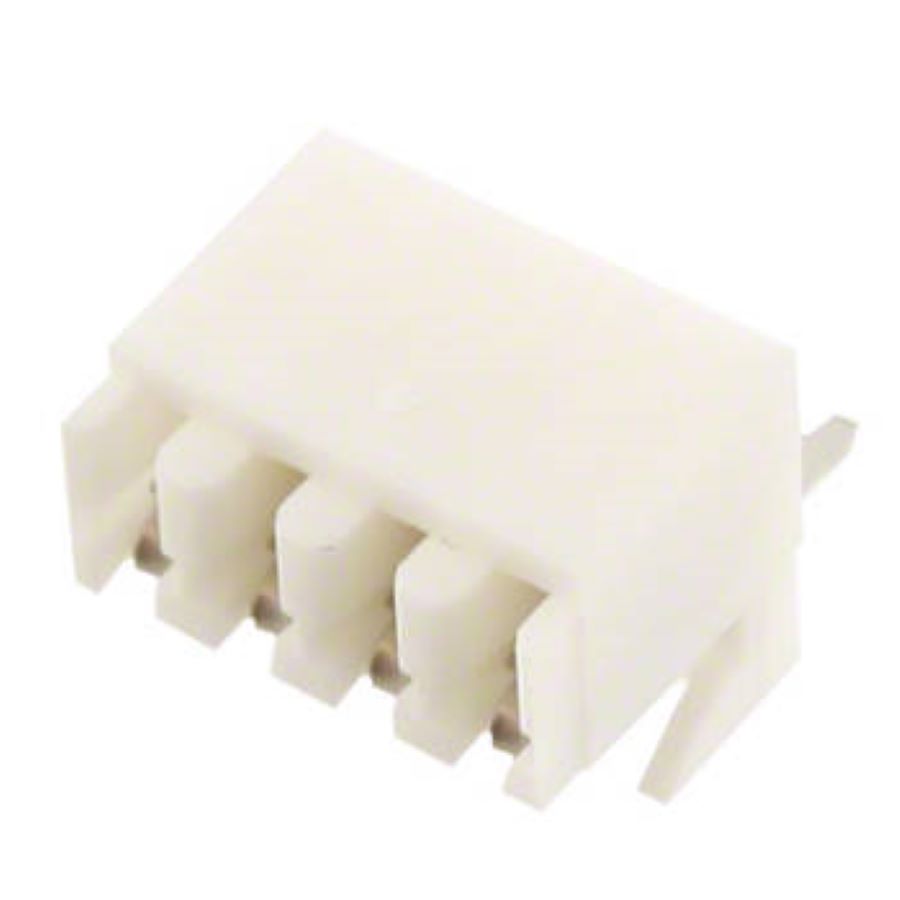

22-17-3042
Manufacturer:
Molex
Mfr.Part #:
22-17-3042
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.1 mm |
| Width | 4.7 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 7.9 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Number of Circuits | 4 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | White |
| Gender | Socket (Female) |
| Number of Contacts | 4 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | US |
| Termination Post Length | 3.35 mm |
