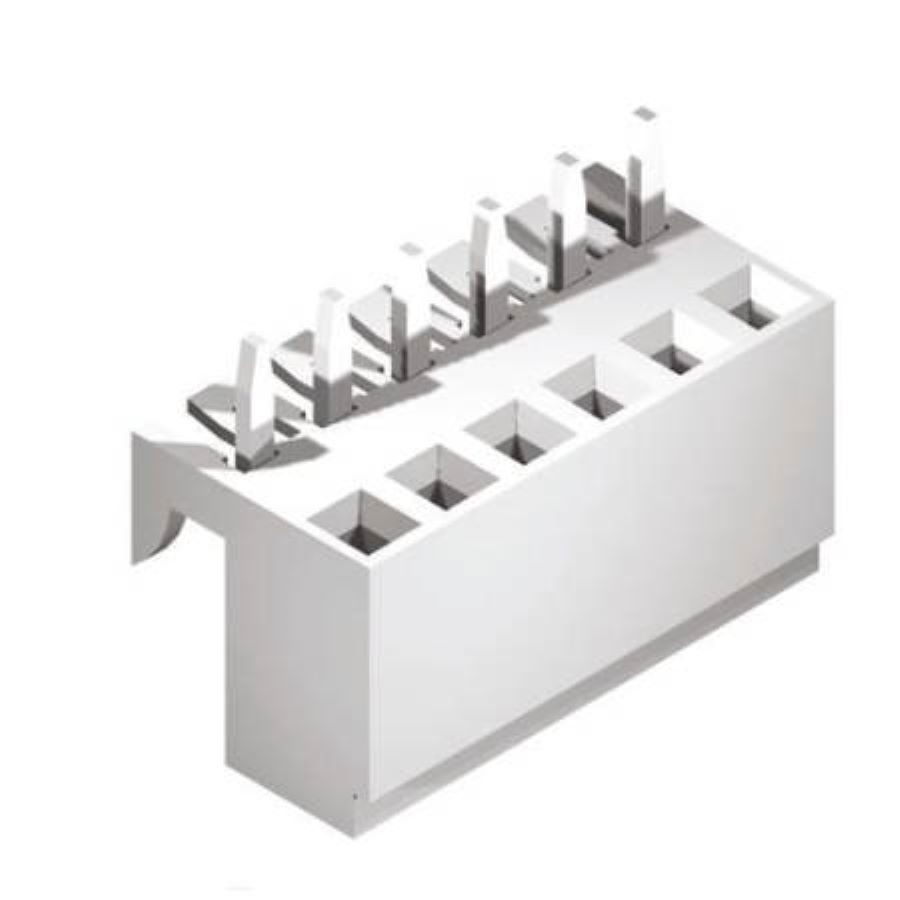

22-17-3062
Manufacturer:
Molex
Mfr.Part #:
22-17-3062
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Bottom Entry Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Number of Circuits | 6 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | White |
| Gender | Socket (Female) |
| Number of Contacts | 6 |
| Connector Type | Receptacle, Bottom Entry |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | PR |
| Termination Post Length | 3.35 mm |
Stock: 405
Distributors
pcbx
pcbxUnit Price$0.70104
Ext.Price$0.70104
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70104 | $0.70104 |
| 10 | $0.59417 | $5.94170 |
| 25 | $0.56292 | $14.07300 |
| 50 | $0.53331 | $26.66550 |
| 100 | $0.50526 | $50.52600 |
| 300 | $0.47712 | $143.13600 |
| 500 | $0.45055 | $225.27500 |
| 1000 | $0.42404 | $424.04000 |
