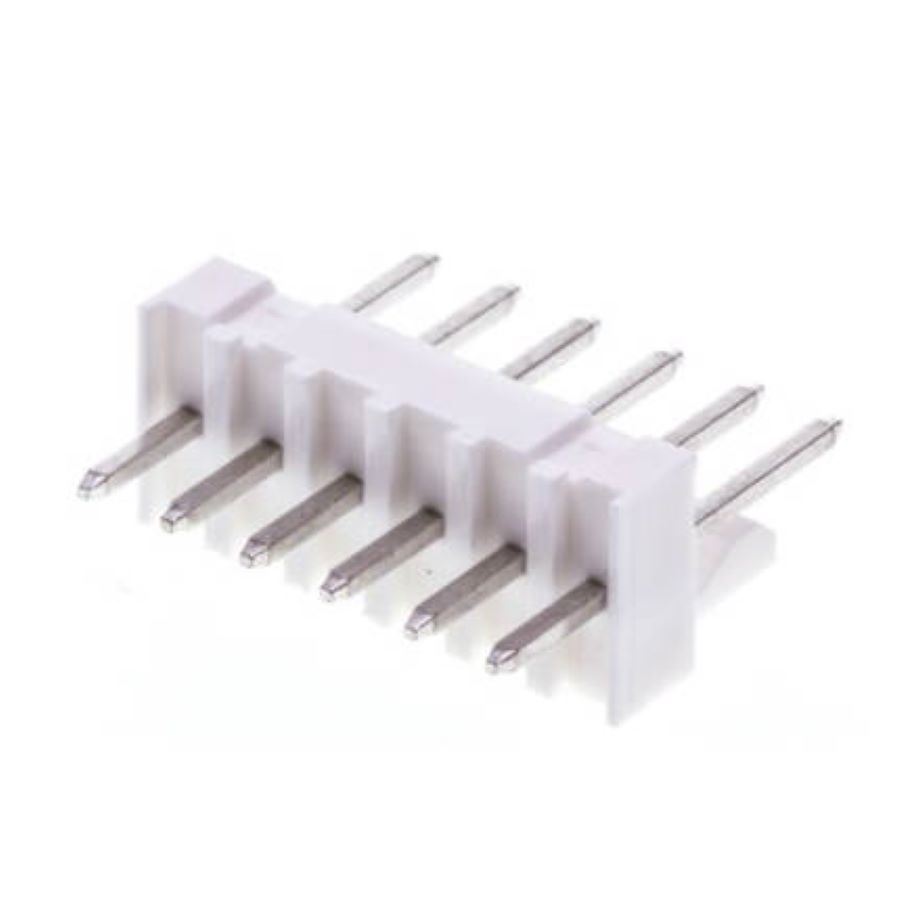

22-23-2061
Manufacturer:
Molex
Mfr.Part #:
22-23-2061
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 31.7 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 6 |
| Height | 10.91 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 9.02 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 500 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Orange |
| glow wire compliant | Non-compliant |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 17377
Distributors
pcbx
pcbxUnit Price$0.22570
Ext.Price$0.22570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22570 | $0.22570 |
| 10 | $0.18980 | $1.89800 |
| 50 | $0.16163 | $8.08150 |
| 100 | $0.13764 | $13.76400 |
| 500 | $0.12273 | $61.36500 |
| 1000 | $0.10943 | $109.43000 |
| 3000 | $0.10497 | $314.91000 |
| 5000 | $0.10070 | $503.50000 |
| 10000 | $0.09660 | $966.00000 |
