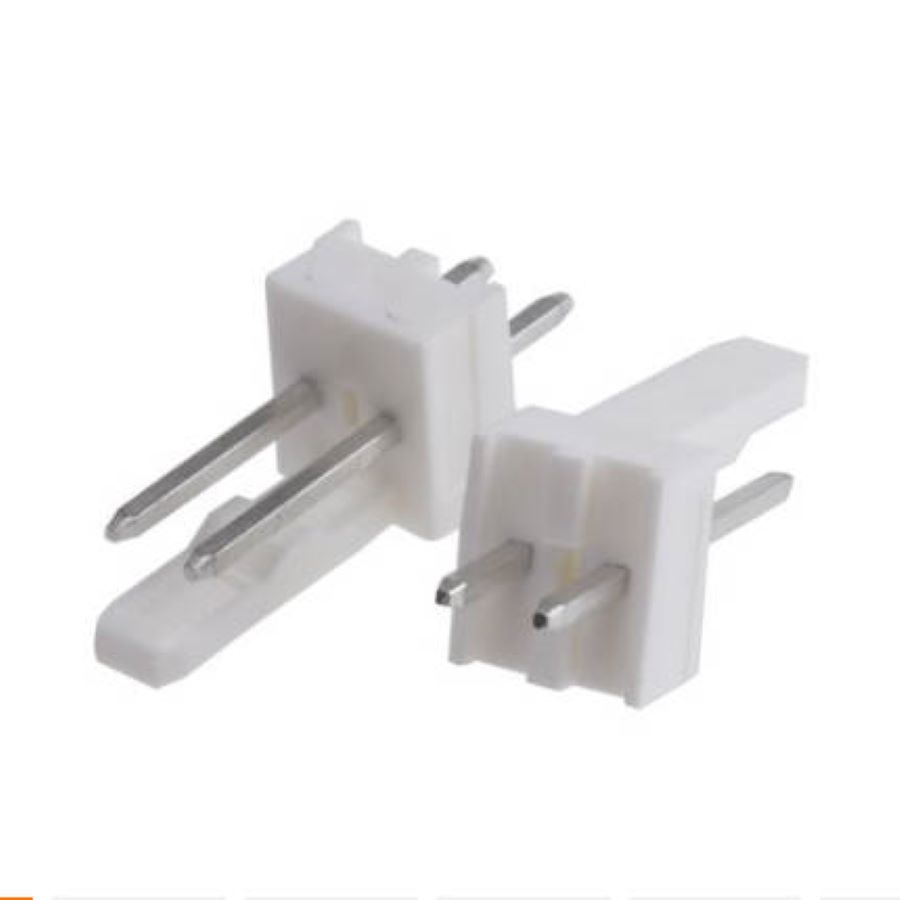

22-27-2021
Manufacturer:
Molex
Mfr.Part #:
22-27-2021
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 11.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 4 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TH |
| Termination Post Length | 3.56 mm |
Stock: 54784
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.12995 | $1.29950 |
| 50 | $0.11498 | $5.74900 |
| 100 | $0.10174 | $10.17400 |
| 500 | $0.09511 | $47.55500 |
| 1000 | $0.08891 | $88.91000 |
| 3000 | $0.08541 | $256.23000 |
| 5000 | $0.08205 | $410.25000 |
| 10000 | $0.07883 | $788.30000 |
