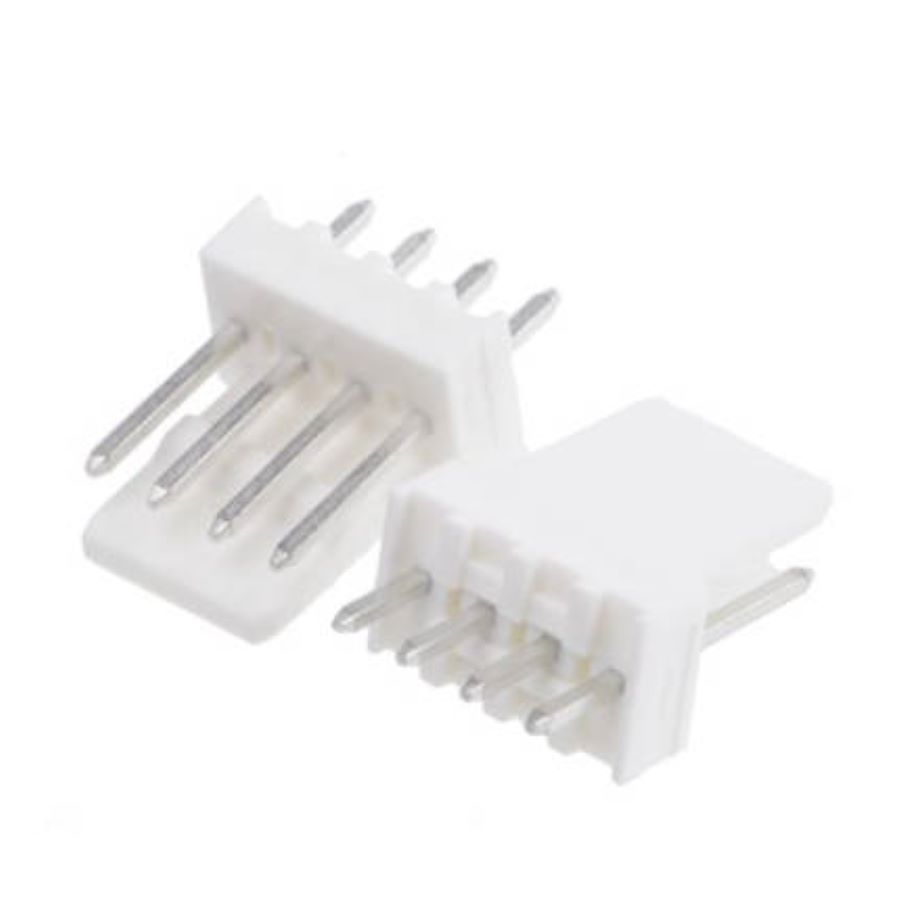

22-27-2041
Manufacturer:
Molex
Mfr.Part #:
22-27-2041
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 10322
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.18552 | $1.85520 |
| 25 | $0.17440 | $4.36000 |
| 50 | $0.16473 | $8.23650 |
| 100 | $0.15560 | $15.56000 |
| 300 | $0.14906 | $44.71800 |
| 500 | $0.14279 | $71.39500 |
| 1000 | $0.13679 | $136.79000 |
| 3000 | $0.13333 | $399.99000 |
| 5000 | $0.12995 | $649.75000 |
