22-28-4042
Manufacturer:
Molex
Mfr.Part #:
22-28-4042
Datasheet:
Description:

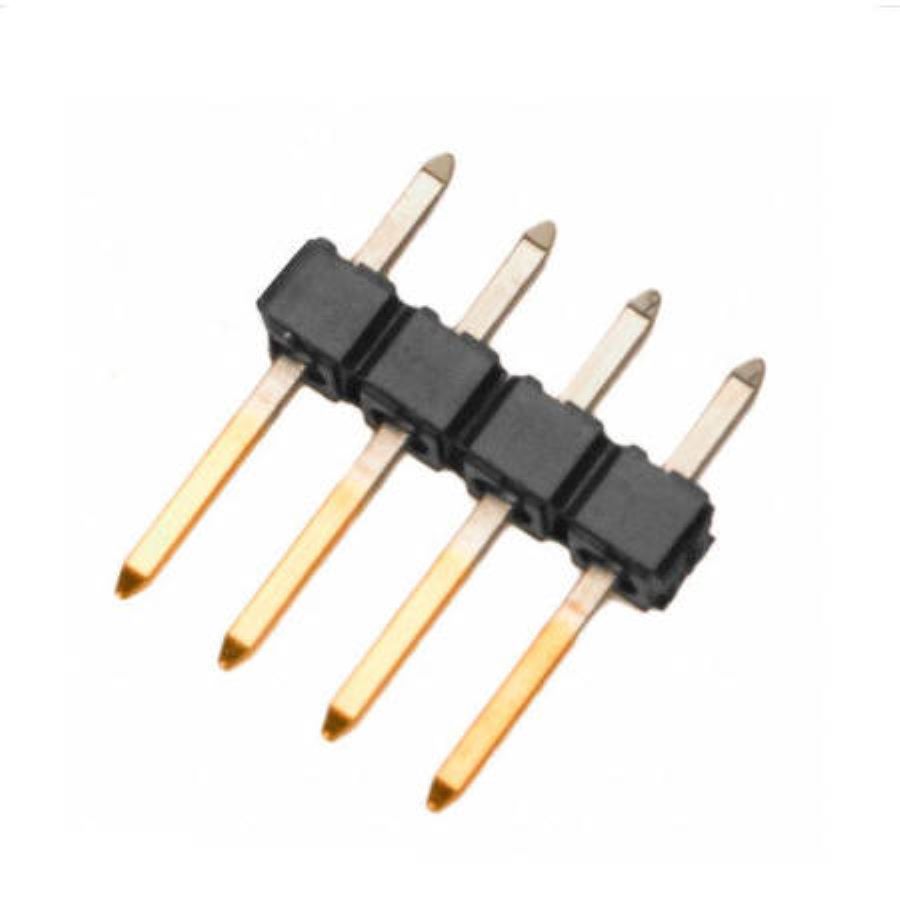

Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 7.493 mm |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.05 mm |
Stock: 8852
Distributors
pcbx
pcbxUnit Price$0.07506
Ext.Price$0.07506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07506 | $0.07506 |
| 10 | $0.07231 | $0.72310 |
| 50 | $0.06966 | $3.48300 |
| 100 | $0.06710 | $6.71000 |
| 500 | $0.06464 | $32.32000 |
| 1000 | $0.06227 | $62.27000 |
| 3000 | $0.05999 | $179.97000 |
| 5000 | $0.05779 | $288.95000 |
| 10000 | $0.05566 | $556.60000 |
