22-28-4067
Manufacturer:
Molex
Mfr.Part #:
22-28-4067
Datasheet:
Description:

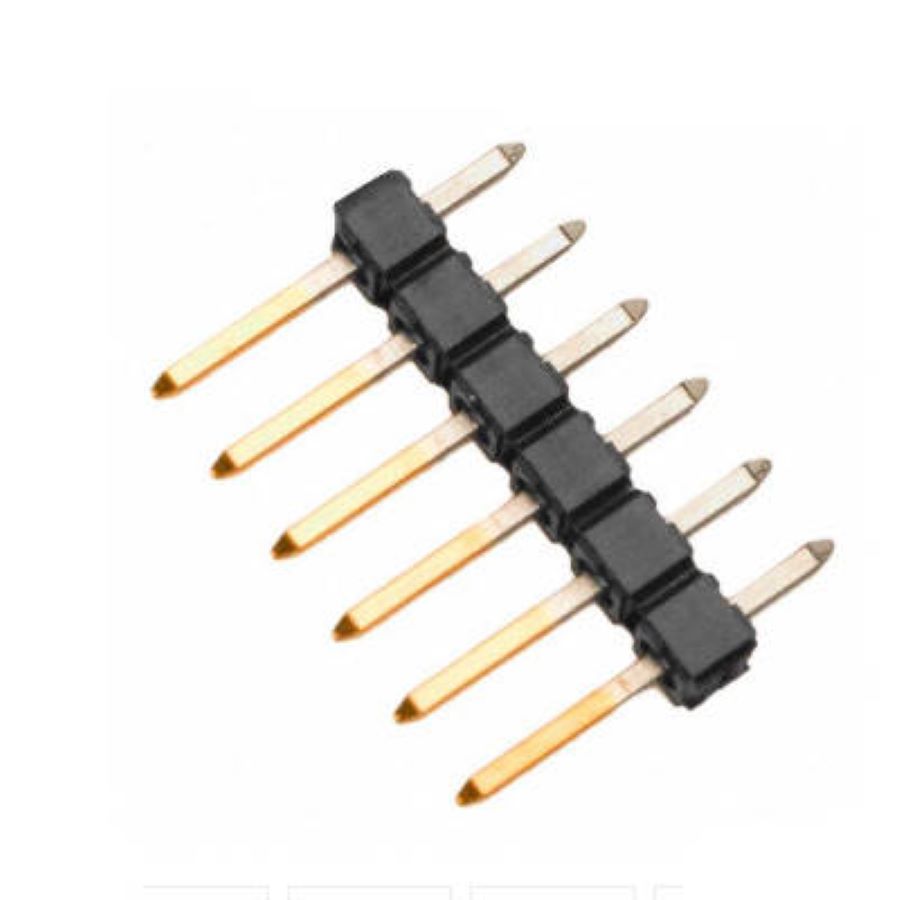

Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 2.49 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header, Breakaway |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| Mating Post Length | 8.13 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.05 mm |
Stock: 1542
Distributors
pcbx
pcbxUnit Price$0.24366
Ext.Price$0.24366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24366 | $0.24366 |
| 10 | $0.21373 | $2.13730 |
| 25 | $0.20946 | $5.23650 |
| 50 | $0.20162 | $10.08100 |
| 100 | $0.19407 | $19.40700 |
| 300 | $0.18542 | $55.62600 |
| 500 | $0.17716 | $88.58000 |
| 1000 | $0.16927 | $169.27000 |
