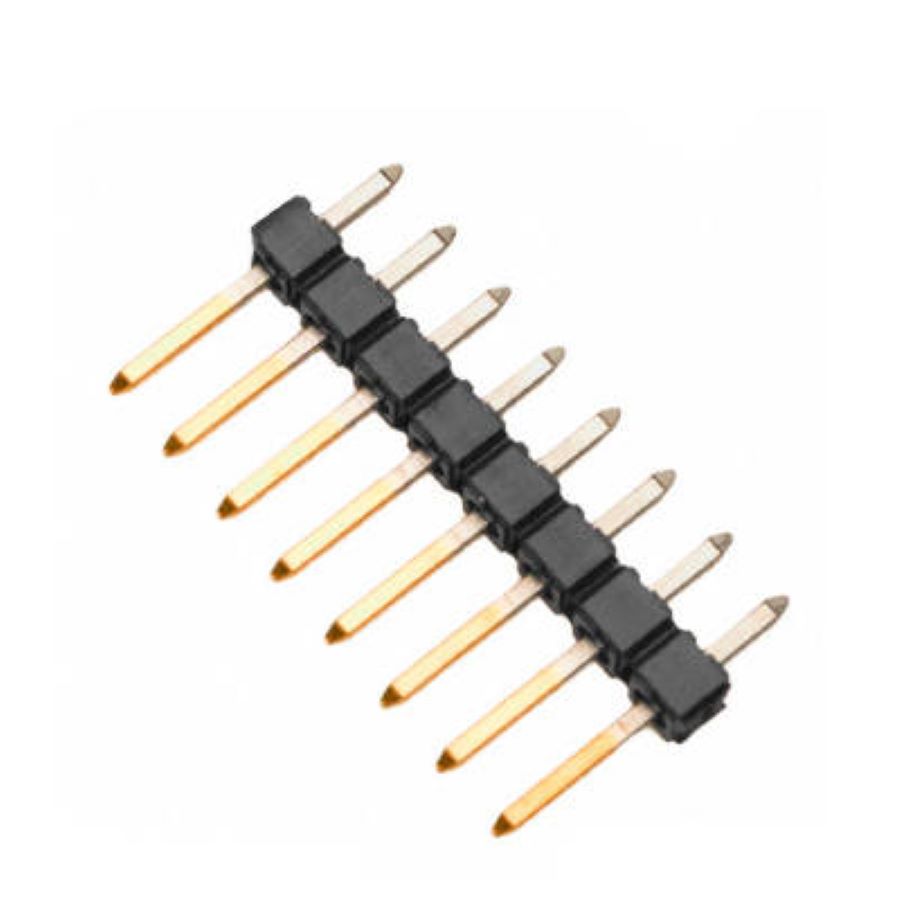

22-28-4083
Manufacturer:
Molex
Mfr.Part #:
22-28-4083
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 6.096 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 4095
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.33427 | $3.34270 |
| 25 | $0.33343 | $8.33575 |
| 50 | $0.32300 | $16.15000 |
| 100 | $0.31290 | $31.29000 |
| 300 | $0.30336 | $91.00800 |
| 500 | $0.29410 | $147.05000 |
| 1000 | $0.26588 | $265.88000 |
| 3000 | $0.24357 | $730.71000 |
| 5000 | $0.22314 | $1115.70000 |
