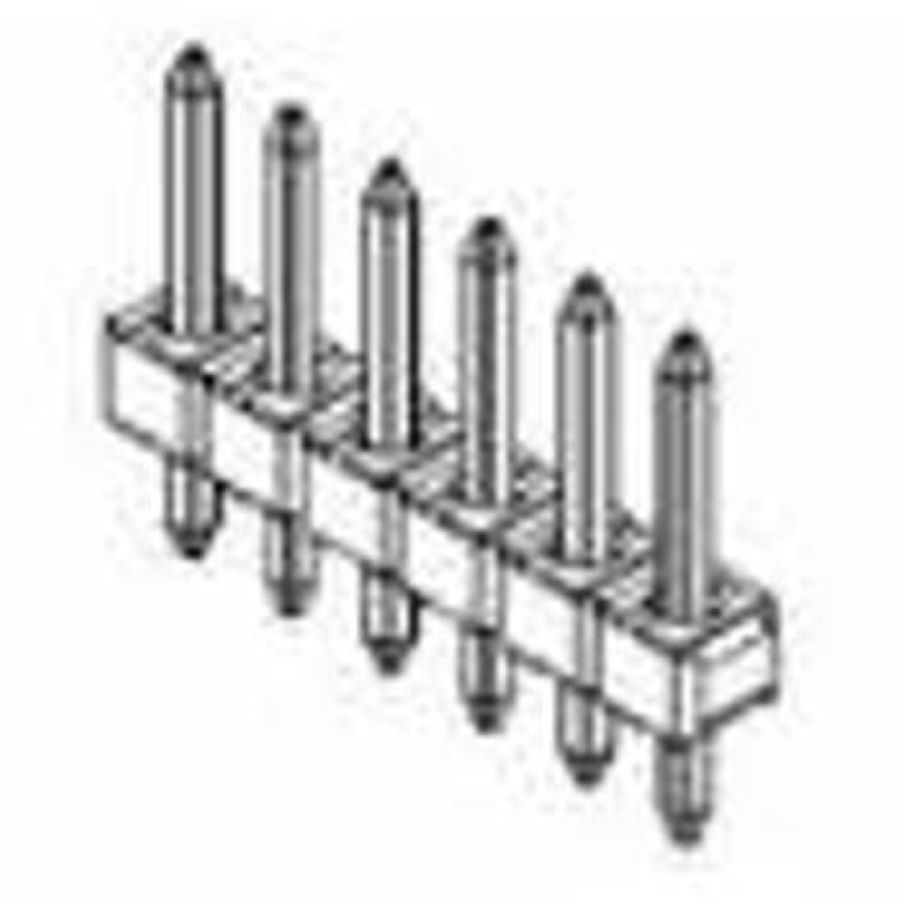

22-28-5023
Manufacturer:
Molex
Mfr.Part #:
22-28-5023
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header, Breakaway |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.43 mm |
Stock: 10033
Distributors
pcbx
pcbxUnit Price$0.08720
Ext.Price$0.08720
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08720 | $0.08720 |
| 10 | $0.06882 | $0.68820 |
| 50 | $0.06362 | $3.18100 |
| 100 | $0.05882 | $5.88200 |
| 500 | $0.05493 | $27.46500 |
| 1000 | $0.05130 | $51.30000 |
| 3000 | $0.04891 | $146.73000 |
| 5000 | $0.04663 | $233.15000 |
| 10000 | $0.04446 | $444.60000 |
