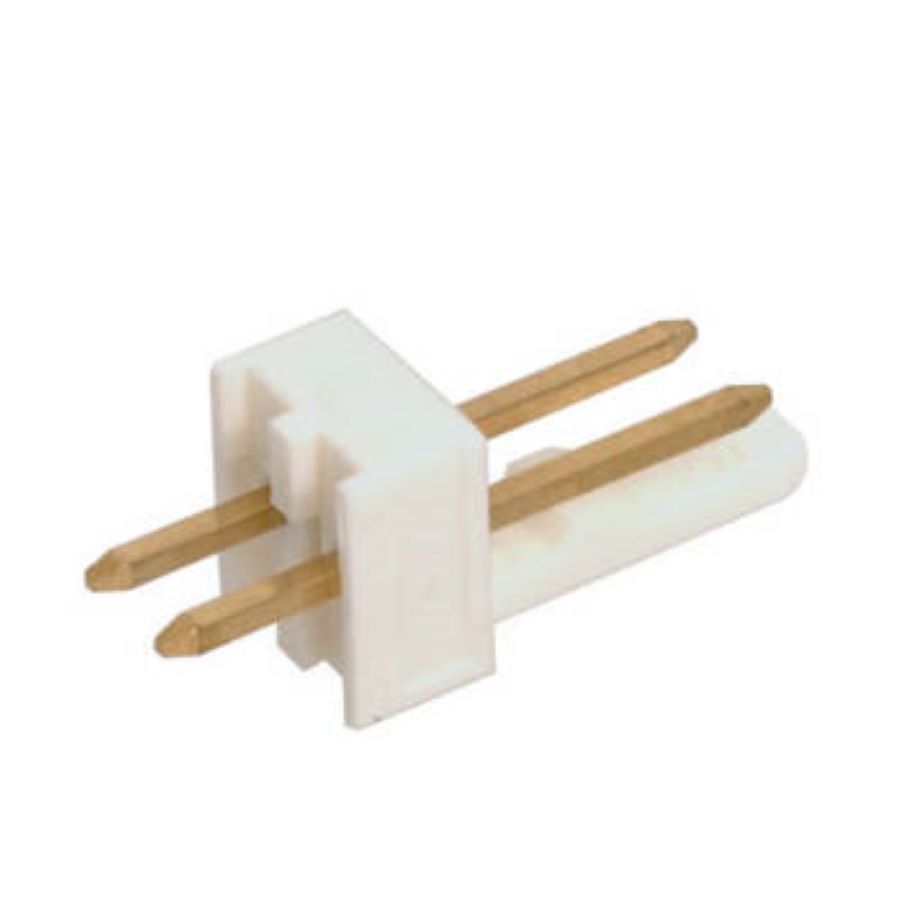

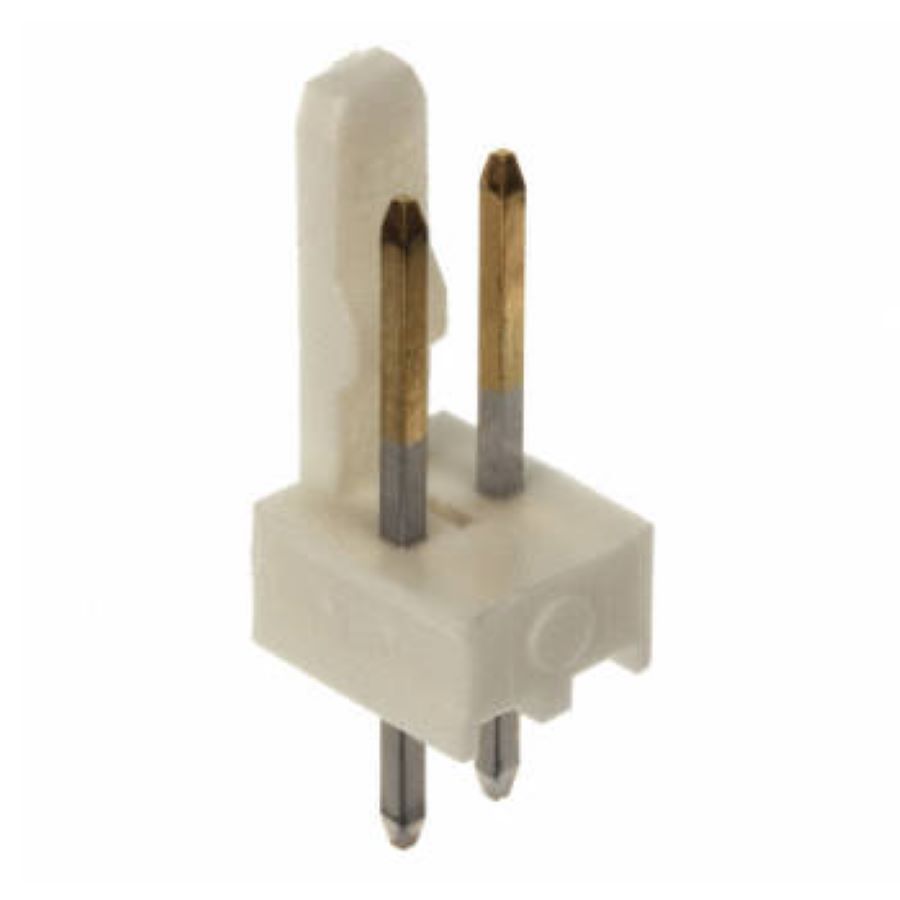

22-29-2021
Manufacturer:
Molex
Mfr.Part #:
22-29-2021
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 11.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.8 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 4 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 15836
Distributors
pcbx
pcbxUnit Price$0.22570
Ext.Price$0.22570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22570 | $0.22570 |
| 10 | $0.19150 | $1.91500 |
| 25 | $0.17099 | $4.27475 |
| 50 | $0.16578 | $8.28900 |
| 100 | $0.16073 | $16.07300 |
| 300 | $0.15481 | $46.44300 |
| 500 | $0.14911 | $74.55500 |
| 1000 | $0.14363 | $143.63000 |
| 3000 | $0.13982 | $419.46000 |
| 5000 | $0.13611 | $680.55000 |
| 10000 | $0.13251 | $1325.10000 |
