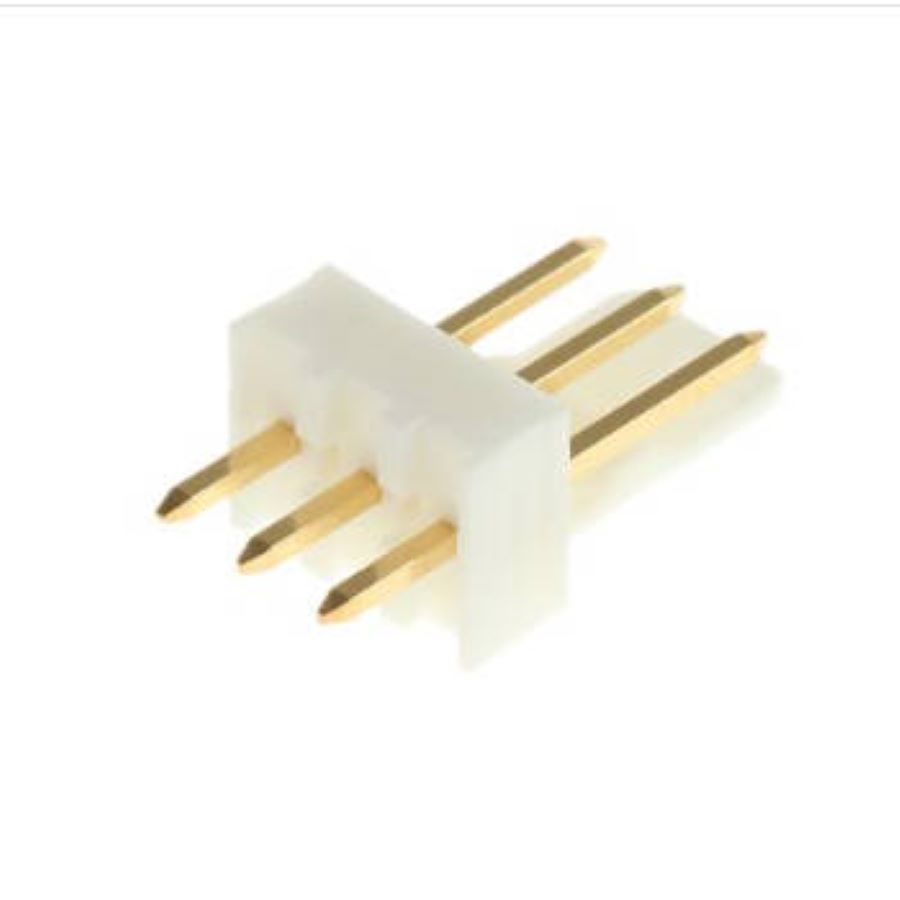

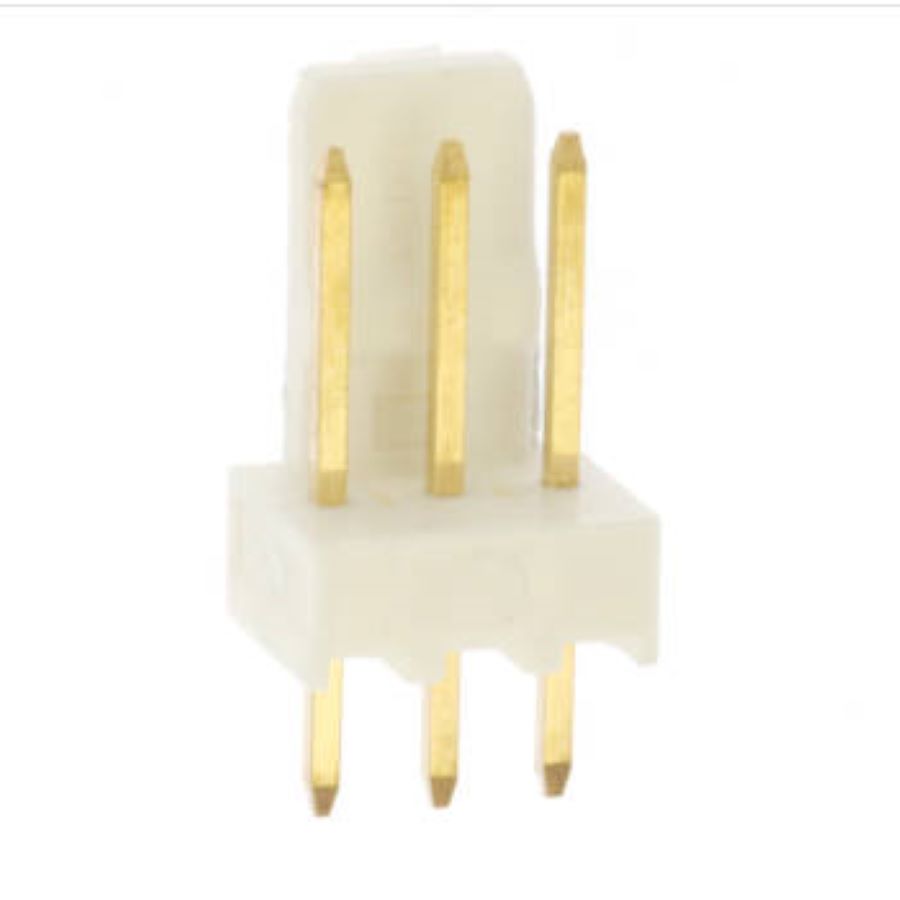

22-29-2031
Manufacturer:
Molex
Mfr.Part #:
22-29-2031
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 12.05 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 9023
Distributors
pcbx
pcbxUnit Price$0.33770
Ext.Price$0.33770
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33770 | $0.33770 |
| 10 | $0.28897 | $2.88970 |
| 25 | $0.27395 | $6.84875 |
| 50 | $0.25971 | $12.98550 |
| 100 | $0.24622 | $24.62200 |
| 300 | $0.22020 | $66.06000 |
| 500 | $0.19693 | $98.46500 |
| 1000 | $0.17611 | $176.11000 |
| 3000 | $0.17525 | $525.75000 |
| 5000 | $0.17440 | $872.00000 |
| 10000 | $0.17355 | $1735.50000 |
