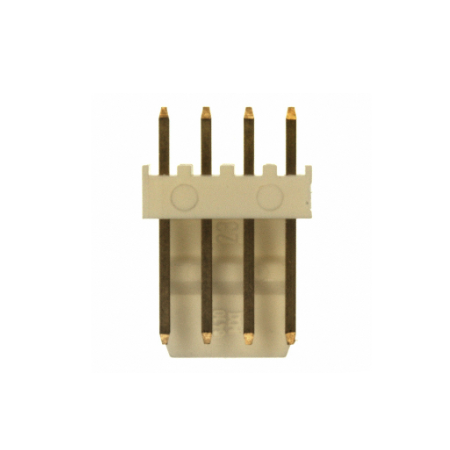

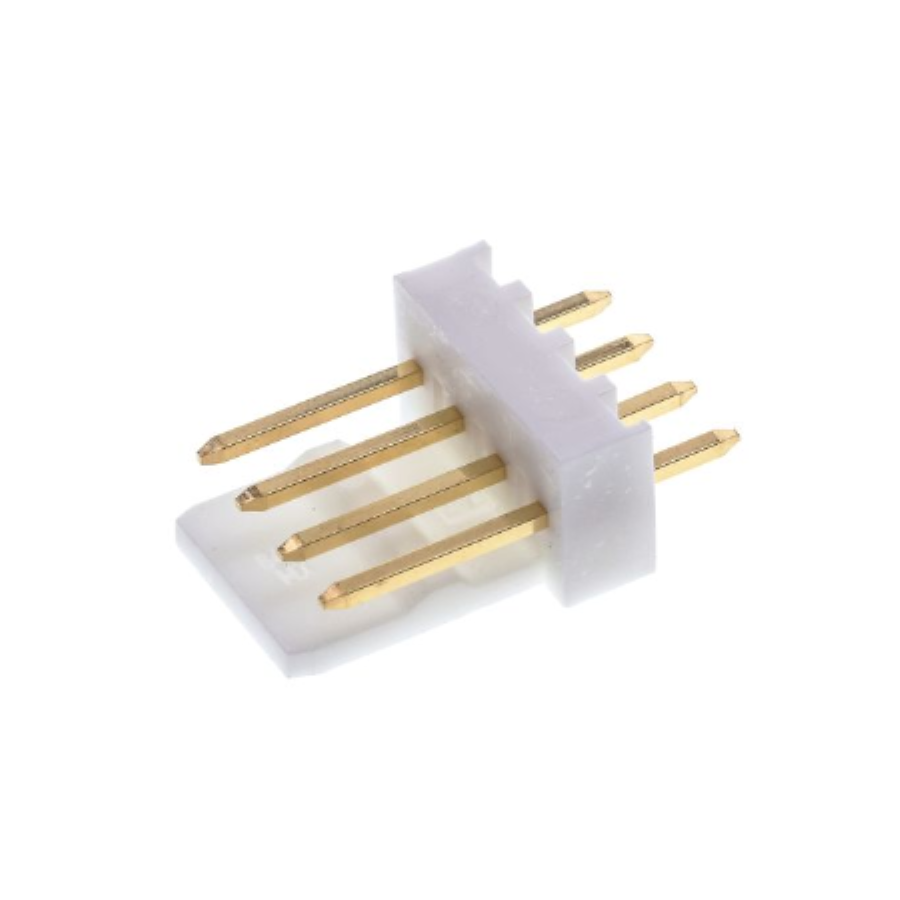

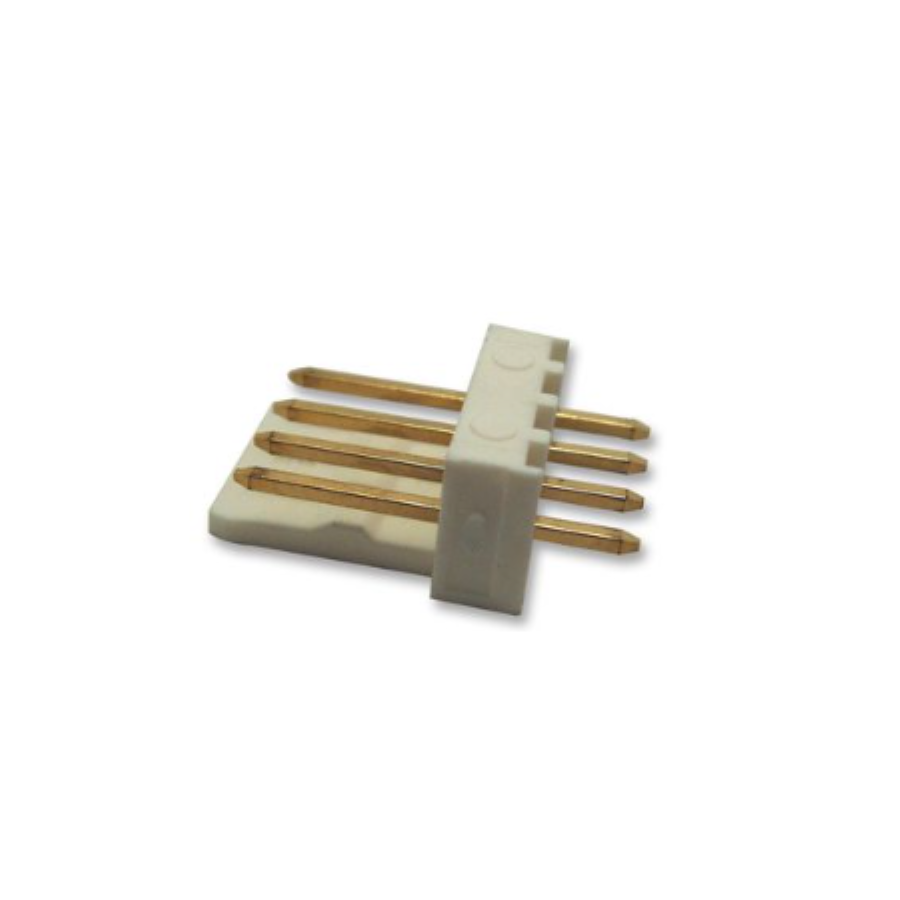

22-29-2041
Manufacturer:
Molex
Mfr.Part #:
22-29-2041
Datasheet:
Description:
Headers and Wire Housings Through Hole Locking Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 15.24 mm |
| Termination | Through Hole |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 4 |
| Height | 11.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.8 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 4 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Lines | 1 |
| Connector Type | Locking |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MX |
| Termination Post Length | 3.56 mm |
Stock: 5684
Distributors
pcbx
pcbxUnit Price$0.39413
Ext.Price$0.39413
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39413 | $0.39413 |
| 10 | $0.27870 | $2.78700 |
| 25 | $0.26492 | $6.62300 |
| 50 | $0.25183 | $12.59150 |
| 100 | $0.23938 | $23.93800 |
| 300 | $0.23112 | $69.33600 |
| 500 | $0.22314 | $111.57000 |
| 1000 | $0.21544 | $215.44000 |
| 3000 | $0.20981 | $629.43000 |
| 5000 | $0.20433 | $1021.65000 |
