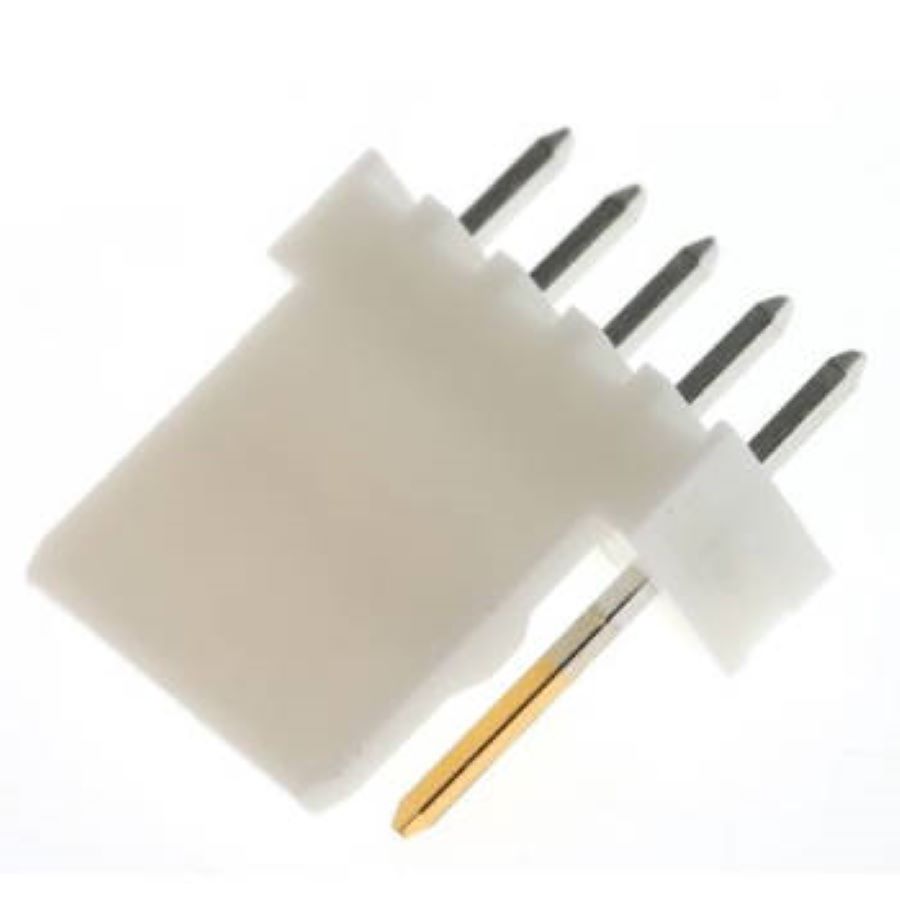

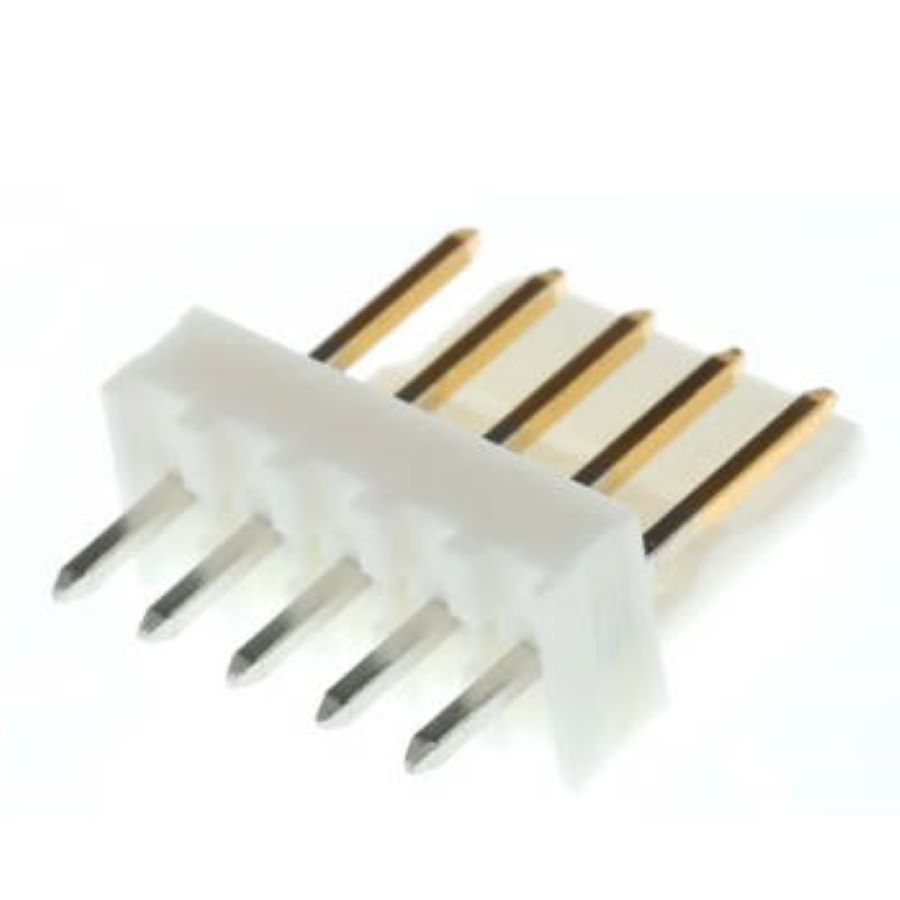

22-29-2051
Manufacturer:
Molex
Mfr.Part #:
22-29-2051
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 7.77 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 5 |
| Height | 14.73 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 10.01 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Number of Lines | 1 |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Friction |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 7.493 mm |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 1358
Distributors
pcbx
pcbxUnit Price$0.51980
Ext.Price$0.51980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51980 | $0.51980 |
| 10 | $0.41207 | $4.12070 |
| 25 | $0.40524 | $10.13100 |
| 50 | $0.37273 | $18.63650 |
| 100 | $0.34283 | $34.28300 |
| 300 | $0.32931 | $98.79300 |
| 500 | $0.31633 | $158.16500 |
| 1000 | $0.29464 | $294.64000 |
| 3000 | $0.27444 | $823.32000 |
| 5000 | $0.25563 | $1278.15000 |
