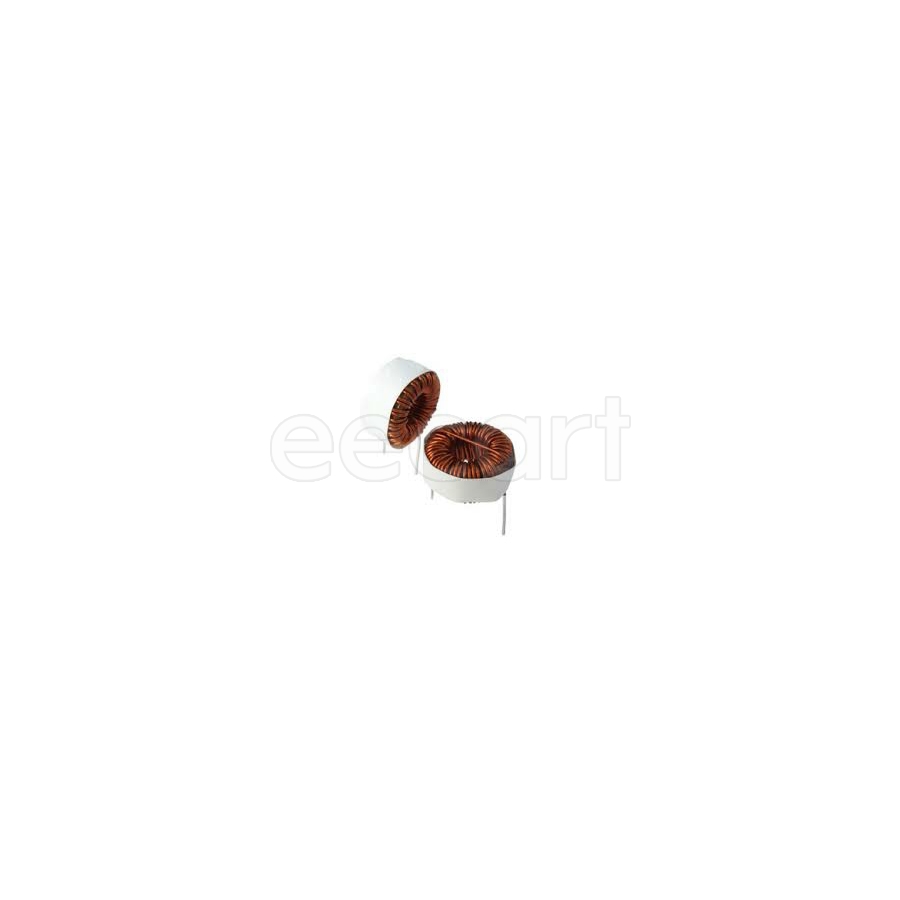

2200HT-102-V-RC
Manufacturer:
Bourns
Mfr.Part #:
2200HT-102-V-RC
Datasheet:
Description:
Fixed Inductors 24.13mmD×13.97mmW×24.13mmH Through Hole 1 mH 15 % 1.9 A 490 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Width | 13.97 mm |
| Termination | Radial |
| Diameter | 24.13 mm |
| Max Operating Temperature | 200 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 490 mΩ |
| Height | 24.13 mm |
| Packaging | Tray |
| Depth | 13.97 mm |
| RoHS | Compliant |
| Lead Pitch | 12.44 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 490 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 1 mH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.9 A |
| inductance tolerance | 15 % |
| Max DC Current | 1.9 A |
| DC Current | 1.9 A |
| Schedule B | 8504500000 |
| Type | Toroidal |
Stock: 13
Distributors
pcbx
pcbxUnit Price$2.03367
Ext.Price$2.03367
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.03367 | $2.03367 |
| 10 | $1.67188 | $16.71880 |
| 25 | $1.55615 | $38.90375 |
| 50 | $1.44843 | $72.42150 |
| 100 | $1.34817 | $134.81700 |
| 300 | $1.25485 | $376.45500 |
| 500 | $1.16799 | $583.99500 |
| 1000 | $1.08714 | $1087.14000 |
