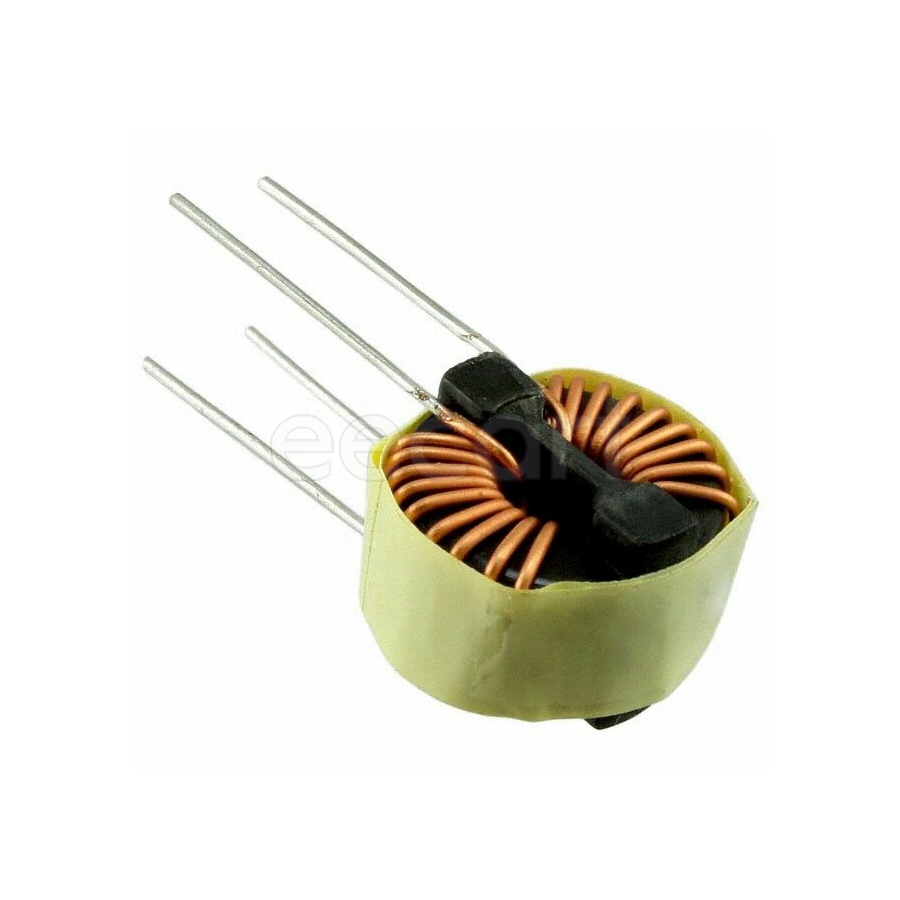

2200HT-120-V-RC
Manufacturer:
Bourns
Mfr.Part #:
2200HT-120-V-RC
Datasheet:
Description:
Fixed Inductors 24.13mmD×13.97mmW×24.13mmH Through Hole 12 µH 15 % 10.9 A 15 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Width | 13.97 mm |
| Termination | Radial |
| Diameter | 24.13 mm |
| Max Operating Temperature | 200 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 13.97 mm |
| RoHS | Compliant |
| Lead Pitch | 11.68 mm |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Current Rating | 10.9 A |
| DC Resistance (DCR) | 15 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 12 µH |
| Core Material | Iron Powder |
| Max DC Current | 10.9 A |
| DC Current | 10.9 A |
| Type | Toroidal |
Stock: 141
Distributors
pcbx
pcbxUnit Price$2.03387
Ext.Price$2.03387
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.03387 | $2.03387 |
| 10 | $1.67737 | $16.77370 |
| 25 | $1.46450 | $36.61250 |
| 50 | $1.37856 | $68.92800 |
| 100 | $1.29766 | $129.76600 |
| 300 | $1.22151 | $366.45300 |
| 500 | $1.14983 | $574.91500 |
| 1000 | $1.08234 | $1082.34000 |
