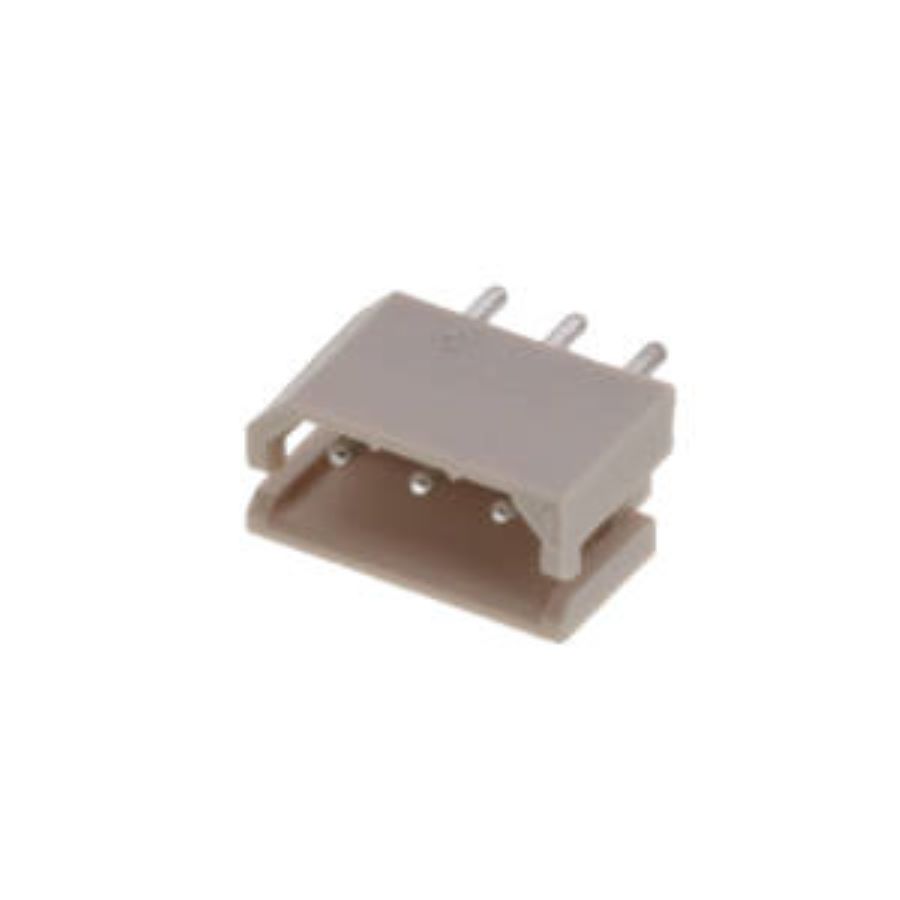

22035035
Manufacturer:
Molex
Mfr.Part #:
22035035
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 9.9 mm |
| Width | 4.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 5.9 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Male |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| shrouded | Yes |
| Contact Gender | Male |
| Test Voltage | 1 kV |
| Mating Post Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TW |
| Termination Post Length | 3.5 mm |
