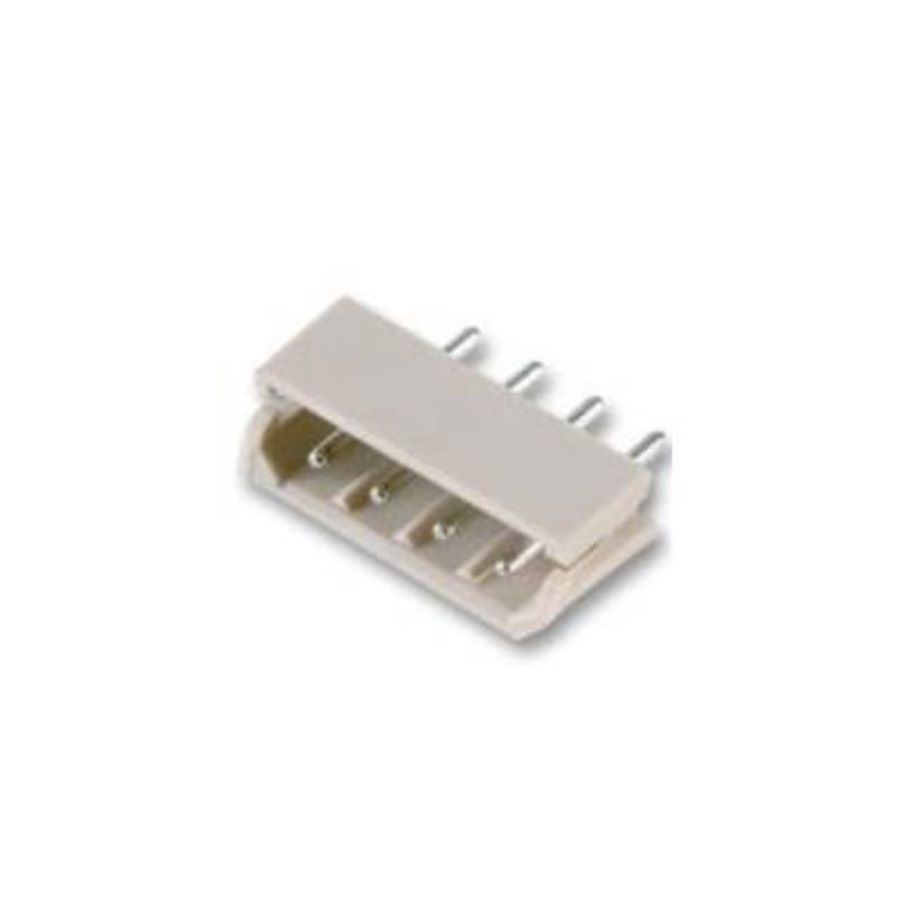

22035045
Manufacturer:
Molex
Mfr.Part #:
22035045
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| Contact Gender | Male |
| Test Voltage | 1 kV |
| Mating Post Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TW |
| Termination Post Length | 3.5 mm |
Stock: 32142
Distributors
pcbx
pcbxUnit Price$0.09667
Ext.Price$0.09667
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09667 | $0.09667 |
| 10 | $0.08845 | $0.88450 |
| 50 | $0.08093 | $4.04650 |
| 100 | $0.07633 | $7.63300 |
| 500 | $0.07199 | $35.99500 |
| 1000 | $0.06790 | $67.90000 |
| 3000 | $0.06454 | $193.62000 |
| 5000 | $0.06135 | $306.75000 |
