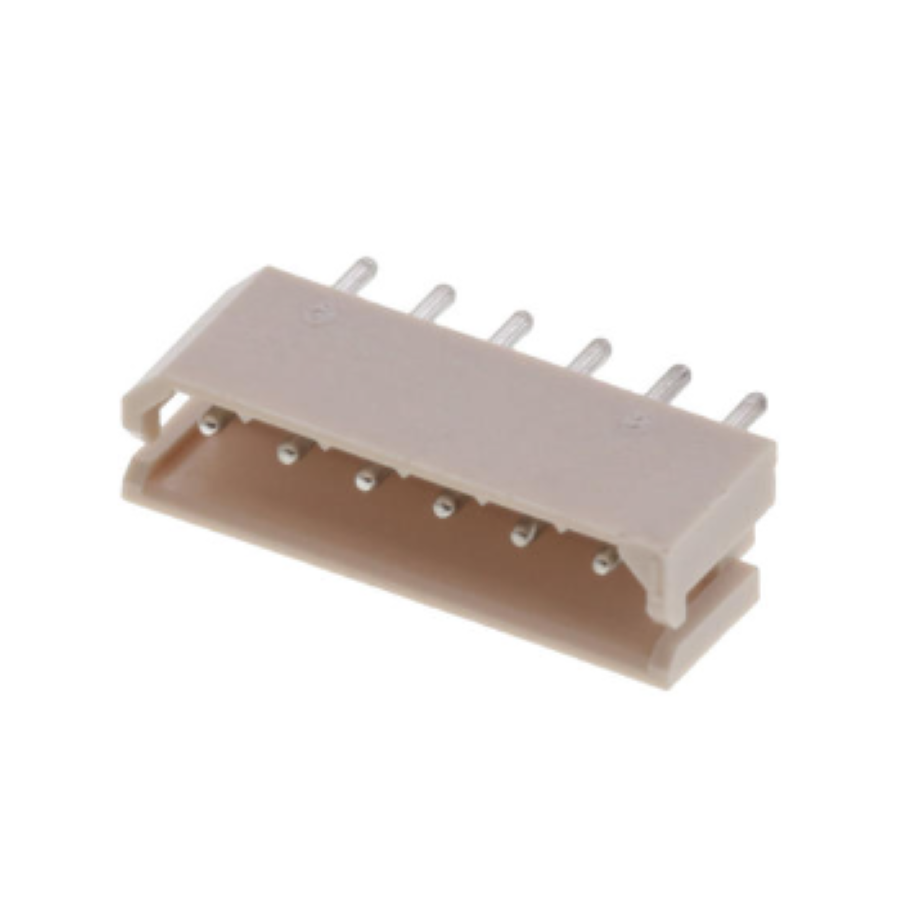

22035095
Manufacturer:
Molex
Mfr.Part #:
22035095
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:9 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Number of Circuits | 9 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Male |
| Number of Contacts | 9 |
| Connector Type | Male Pin |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TW |
| Termination Post Length | 3.5 mm |
Stock: 467
Distributors
pcbx
pcbxUnit Price$0.17395
Ext.Price$0.17395
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17395 | $0.17395 |
| 10 | $0.13824 | $1.38240 |
| 50 | $0.12045 | $6.02250 |
| 100 | $0.10495 | $10.49500 |
| 500 | $0.09632 | $48.16000 |
| 1000 | $0.09118 | $91.18000 |
