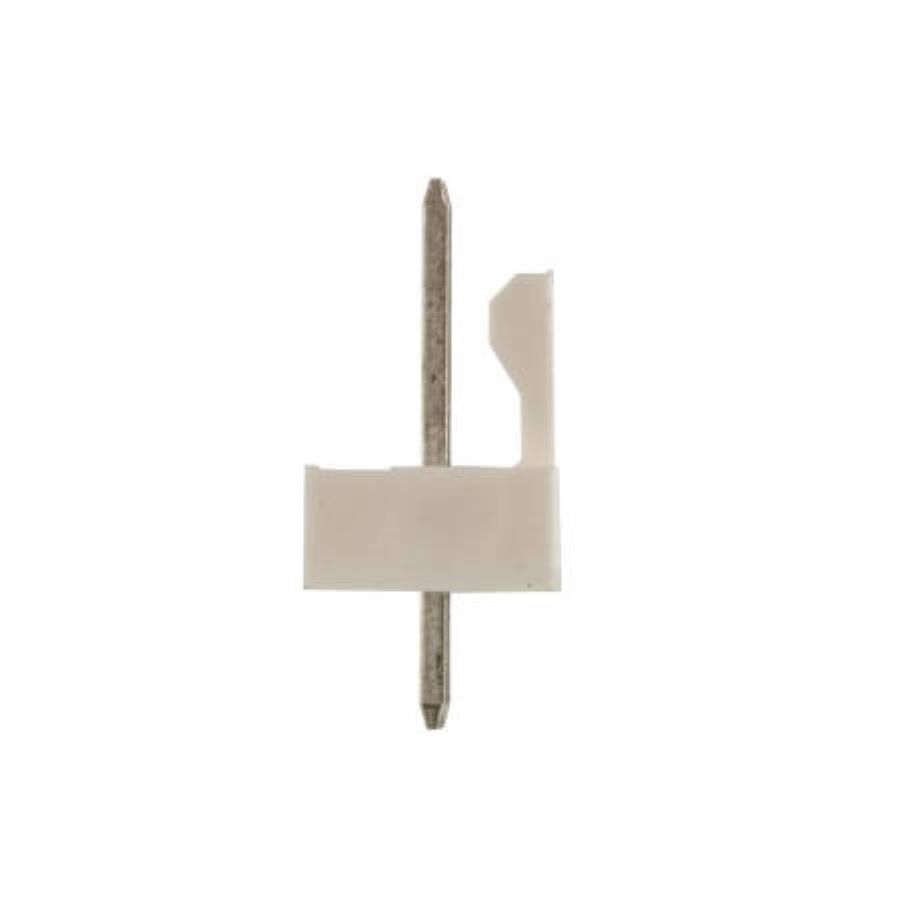

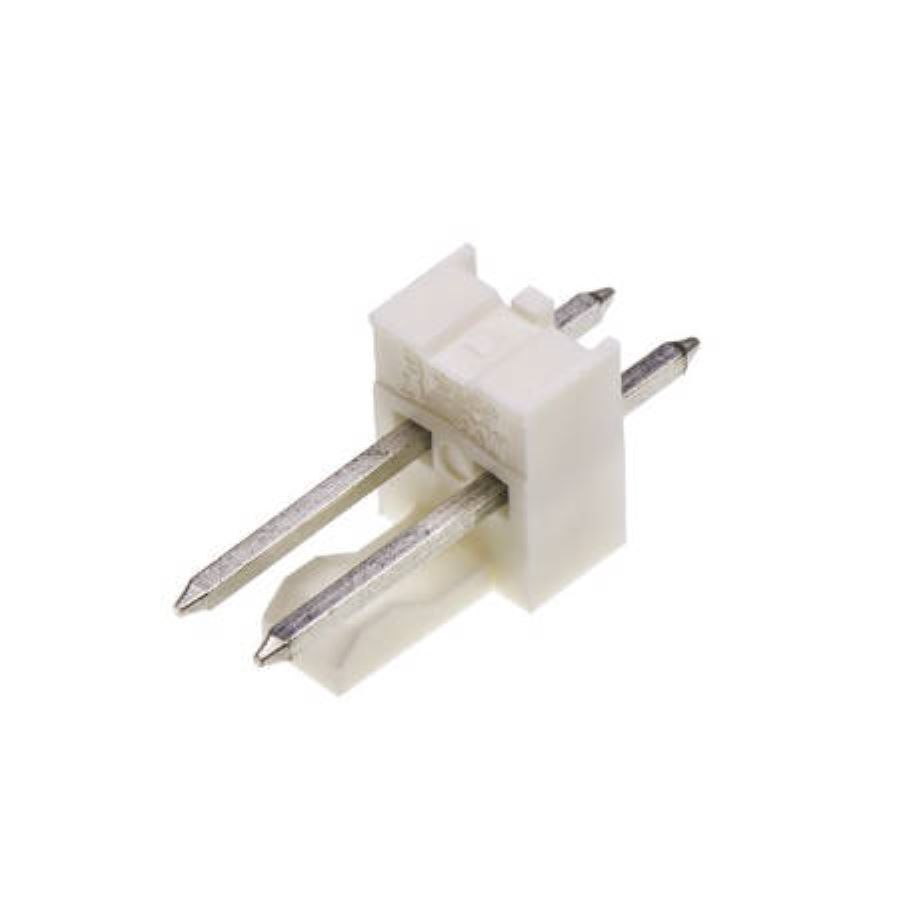

22232021
Manufacturer:
Molex
Mfr.Part #:
22232021
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 5.08 mm |
| Width | 6.35 mm |
| Termination | Through Hole |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 10.67 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 6.35 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 500 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2.5 A |
| Max Current Rating | 4 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | White |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 5701
Distributors
pcbx
pcbxUnit Price$0.09178
Ext.Price$0.09178
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09178 | $0.09178 |
| 10 | $0.08242 | $0.82420 |
| 50 | $0.07402 | $3.70100 |
| 100 | $0.06618 | $6.61800 |
| 500 | $0.05917 | $29.58500 |
| 1000 | $0.05597 | $55.97000 |
| 3000 | $0.05294 | $158.82000 |
| 5000 | $0.05008 | $250.40000 |
