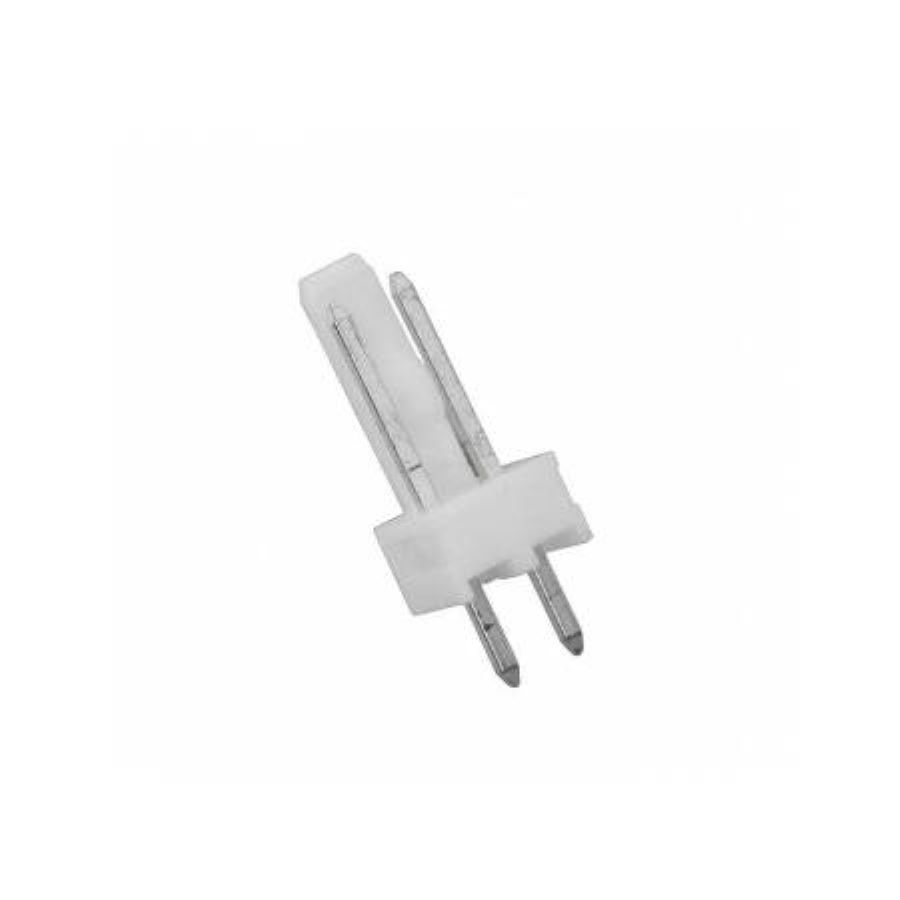

22272021
Manufacturer:
Molex
Mfr.Part #:
22272021
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 11.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 4 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TH |
| Termination Post Length | 3.56 mm |
