22272031
Manufacturer:
Molex
Mfr.Part #:
22272031
Datasheet:
Description:

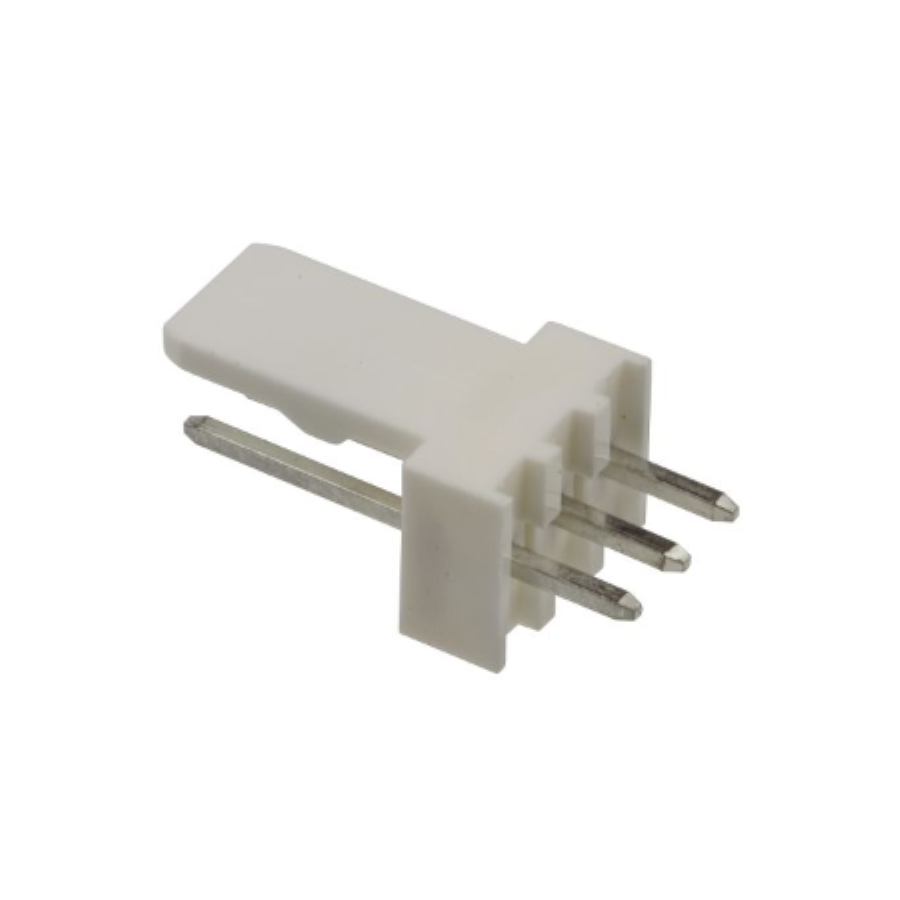

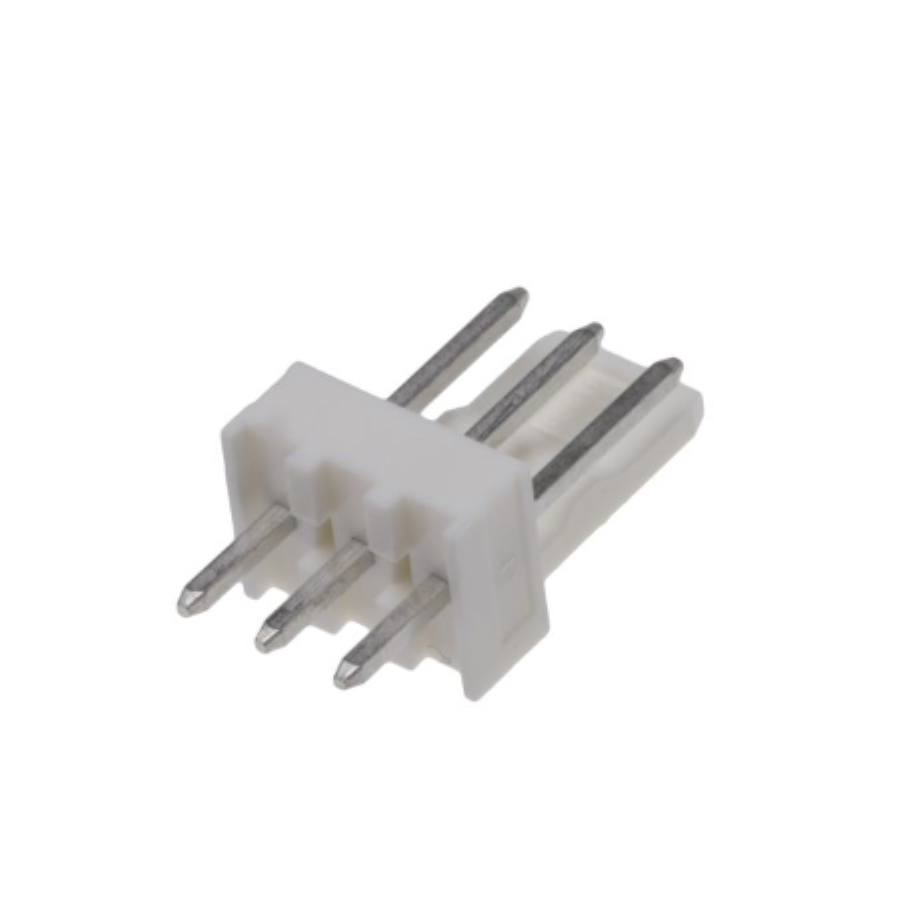

Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12.7 mm |
| Termination | Through Hole |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 11.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.8 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 4 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TH |
| Termination Post Length | 3.56 mm |
Stock: 1687
Distributors
pcbx
pcbxUnit Price$0.16925
Ext.Price$0.16925
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16925 | $0.16925 |
| 10 | $0.15539 | $1.55390 |
| 50 | $0.14266 | $7.13300 |
| 100 | $0.13121 | $13.12100 |
| 500 | $0.12067 | $60.33500 |
| 1000 | $0.11468 | $114.68000 |
| 3000 | $0.10899 | $326.97000 |
| 5000 | $0.10359 | $517.95000 |
