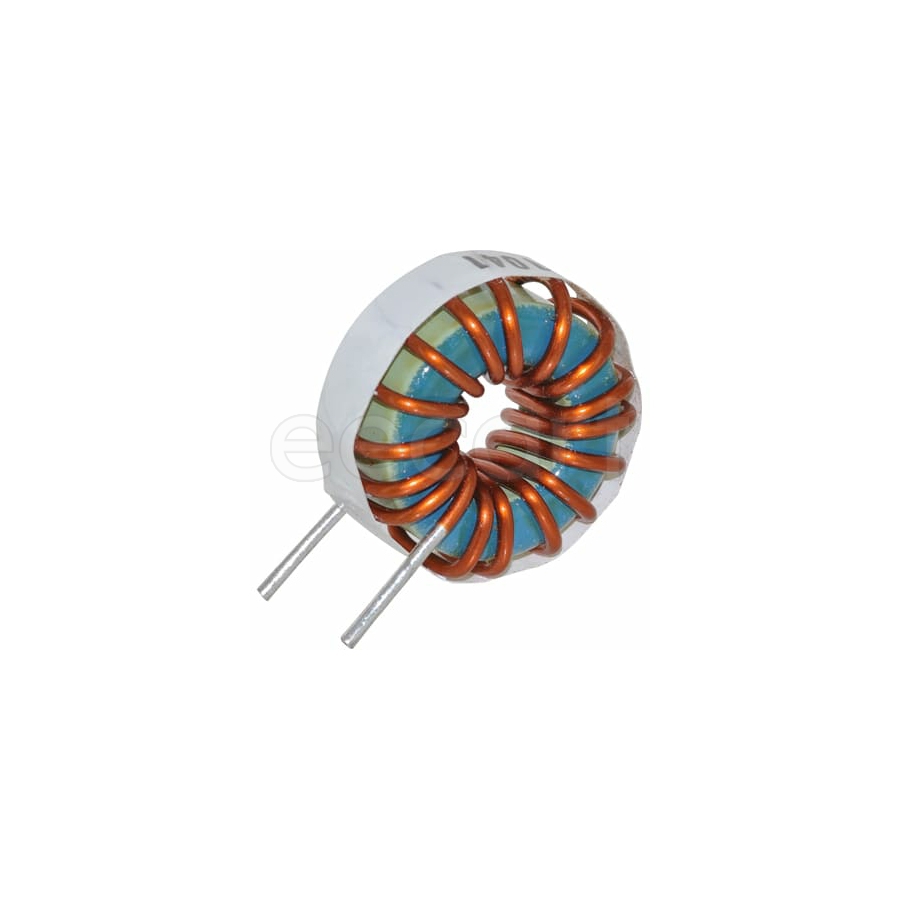

2318-V-RC
Manufacturer:
Bourns
Mfr.Part #:
2318-V-RC
Datasheet:
Description:
Fixed Inductors 32.51mmD×16.51mmW×32.51mmH Through Hole 330 µH 15 % 5.2 A 67 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Width | 16.51 mm |
| Termination | Radial |
| Diameter | 32.5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Depth | 16.51 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 1.0668 mm |
| Lead Pitch | 14.22 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Current Rating | 5.2 A |
| DC Resistance (DCR) | 67 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5.2 A |
| inductance tolerance | 15 % |
| Max DC Current | 5.2 A |
| DC Current | 5.2 A |
| Schedule B | 8504500000 |
| Type | Toroidal |
