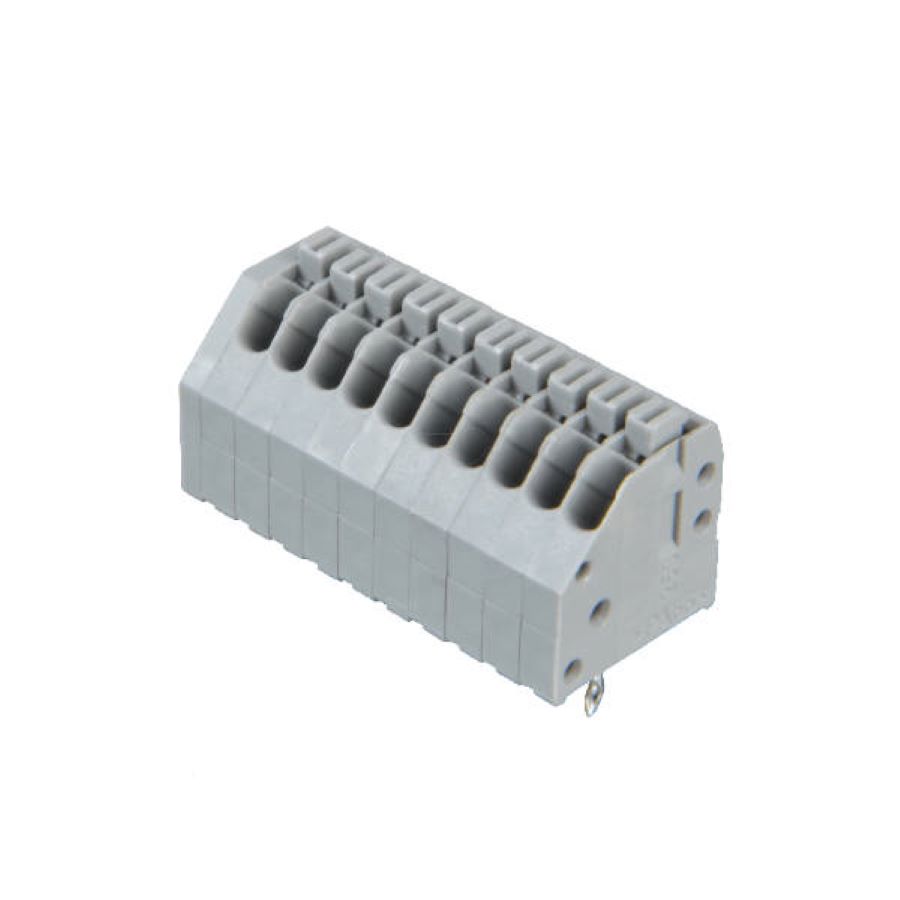

250-410
Manufacturer:
WAGO
Mfr.Part #:
250-410
Datasheet:
Description:
Terminal Blocks Through Hole 10 2.5 mm 2 A 300 V 26 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 26.5 mm |
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -60 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 10 |
| Height | 16.7 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Copper |
| Contact Material(Contact Finish) | Copper, Tin |
| Pitch | 2.5 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Color | Grey |
| Number of Contacts | 10 |
| Connector Type | PCB, Terminal Block |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Housing Color | Gray |
| Connection Method | Push-In |
| Wire Gauge Range | 26 AWG to 20 AWG |
| Voltage Rating (IEC) | 250 V |
| Current Rating (IEC) | 2 A |
