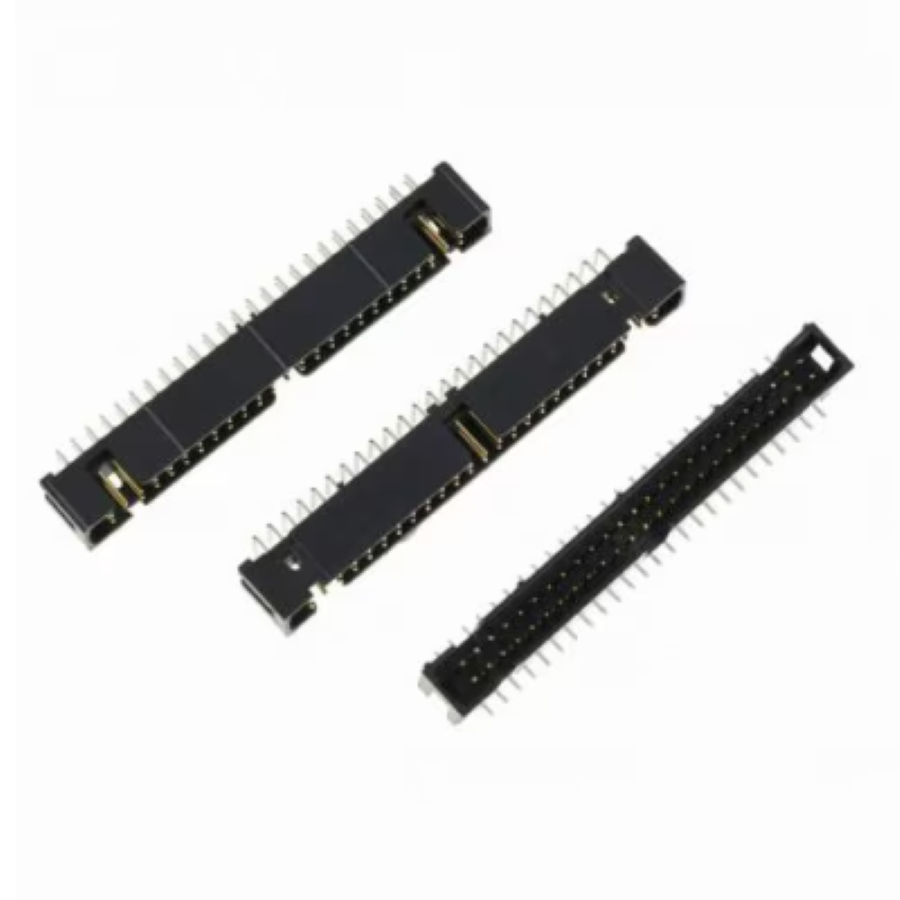

2510-6002UB
Manufacturer:
3M
Mfr.Part #:
2510-6002UB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 10.04 mm |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Tin |
| Pitch | 2.54 mm |
| Current Rating | 1.75 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Color | Grey |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Housing Color | Gray |
| Contact Mating Length | 6.1722 mm |
| Contact Gender | Male |
| Mating Post Length | 6.17 mm |
| Termination Post Length | 2.84 mm |
