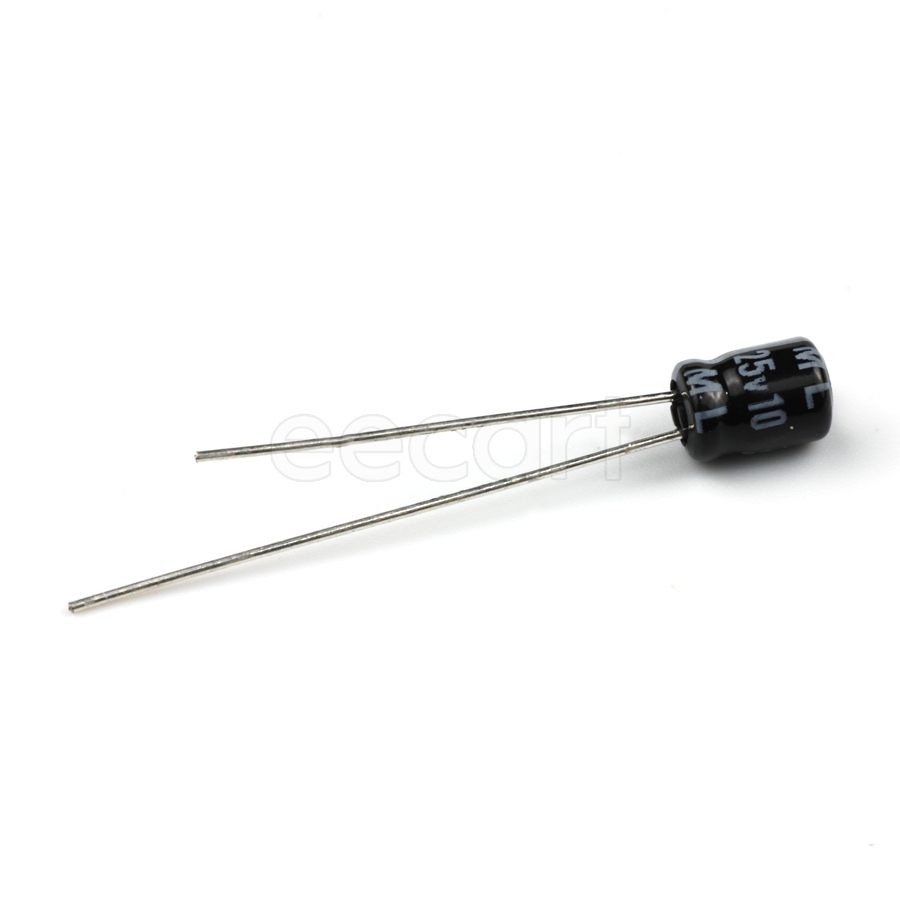

25ML10MEFC4X5
Manufacturer:
Rubycon
Mfr.Part #:
25ML10MEFC4X5
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,4.00mm×5.00mm Through Hole 10 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 3000 Hours |
| Ripple Current | 18 mA |
| Height - Seated (Max) | 6.5 mm |
| Termination | Radial |
| Diameter | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Height | 5 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 450 µm |
| Lead Pitch | 1.5 mm |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Ripple Current (AC) | 18 mA |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 18 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27 mA @ 10 kHz |
Stock: 347
Distributors
pcbx
pcbxUnit Price$0.18809
Ext.Price$0.18809
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18809 | $0.18809 |
| 10 | $0.12140 | $1.21400 |
| 50 | $0.09225 | $4.61250 |
| 100 | $0.07010 | $7.01000 |
| 500 | $0.04753 | $23.76500 |
| 1000 | $0.04506 | $45.06000 |
| 3000 | $0.04008 | $120.24000 |
| 5000 | $0.03565 | $178.25000 |
| 10000 | $0.03505 | $350.50000 |
