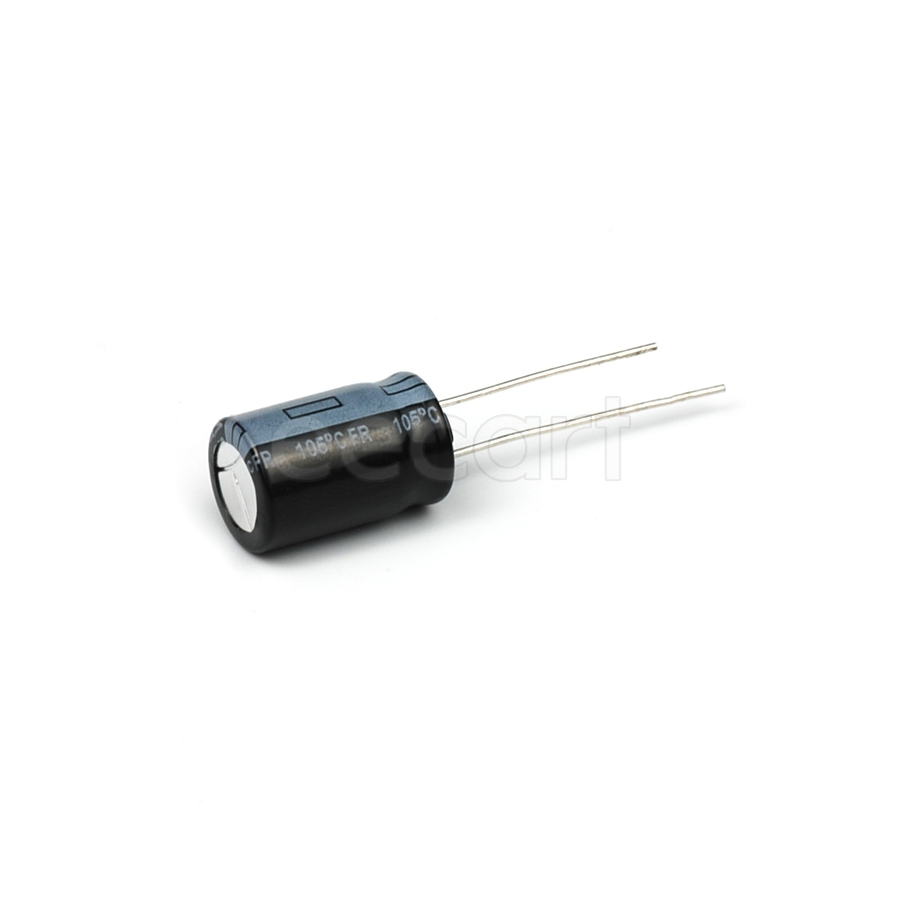

25PX1000MEFCT810X16
Manufacturer:
Rubycon
Mfr.Part #:
25PX1000MEFCT810X16
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,10.00mm×16.00mm Through Hole 1 mF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 1 mF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 740 mA |
| Height - Seated (Max) | 17.5 mm |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 16 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| RoHS | Compliant |
| Lead Pitch | 5.0038 mm |
| REACH SVHC | No SVHC |
| Ripple Current (AC) | 740 mA |
| Ripple Current @ Low Frequency | 740 mA @ 120 Hz |
| Ripple Current @ High Frequency | 888 mA @ 10 kHz |
Stock: 2803
Distributors
pcbx
pcbxUnit Price$0.21005
Ext.Price$0.21005
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21005 | $0.21005 |
| 10 | $0.18699 | $1.86990 |
| 50 | $0.16646 | $8.32300 |
| 100 | $0.14477 | $14.47700 |
| 500 | $0.12591 | $62.95500 |
| 1000 | $0.12046 | $120.46000 |
| 3000 | $0.11524 | $345.72000 |
| 5000 | $0.11025 | $551.25000 |
