25WXA470MEFC10X9
Manufacturer:
Rubycon
Mfr.Part #:
25WXA470MEFC10X9
Datasheet:
Description:

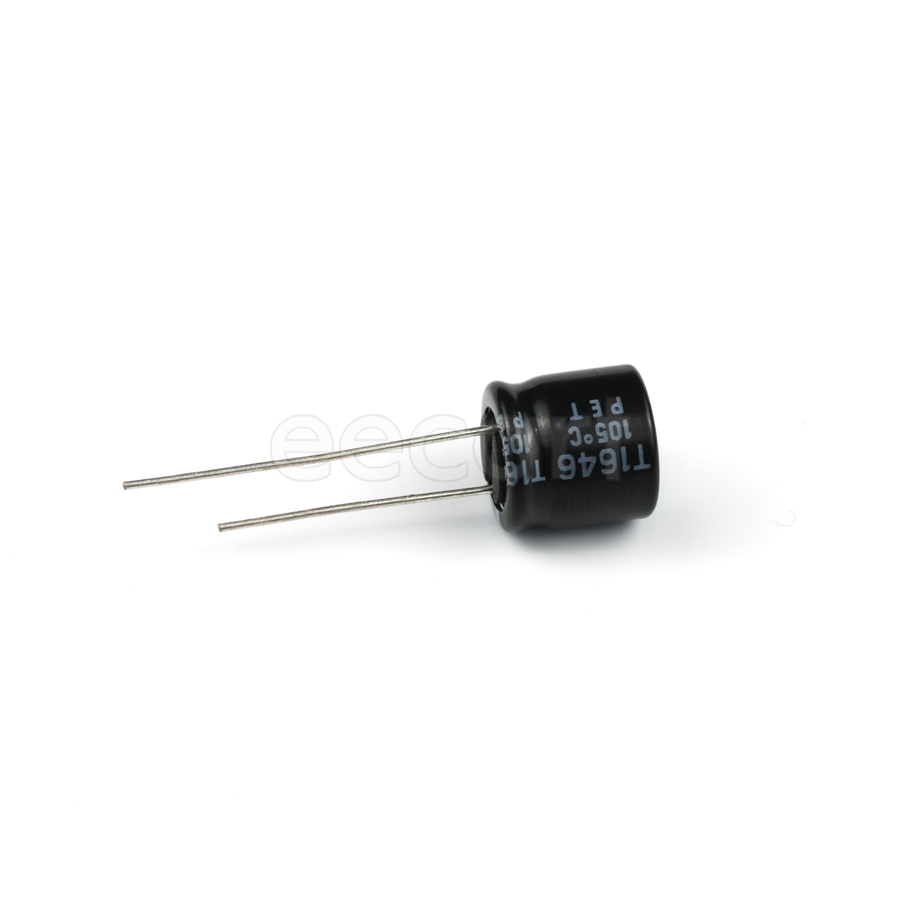

Aluminum Electrolytic Capacitors Radial,10.00mm×9.00mm Through Hole 470 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 370 mA |
| Height - Seated (Max) | 10.5 mm |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 9 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| Polarity | Polar |
| Lead Pitch | 5.0038 mm |
| Ratings | AEC-Q200 |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 444 mA @ 10 kHz |
| RoHS | Compliant |
Stock: 516
Distributors
pcbx
pcbxUnit Price$0.16618
Ext.Price$0.16618
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16618 | $0.16618 |
| 10 | $0.14805 | $1.48050 |
| 50 | $0.13190 | $6.59500 |
| 100 | $0.11485 | $11.48500 |
| 500 | $0.10001 | $50.00500 |
| 1000 | $0.09573 | $95.73000 |
| 3000 | $0.09163 | $274.89000 |
| 5000 | $0.08771 | $438.55000 |
