25YXF47MEFC5X11
Manufacturer:
Rubycon
Mfr.Part #:
25YXF47MEFC5X11
Datasheet:
Description:

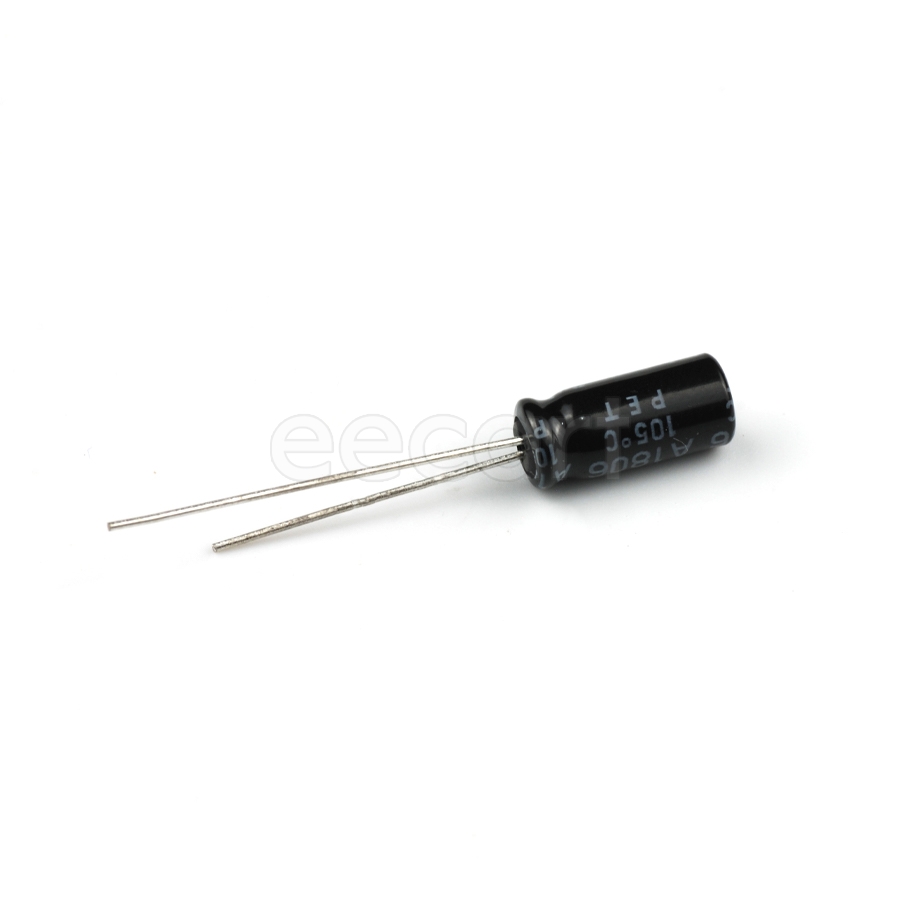

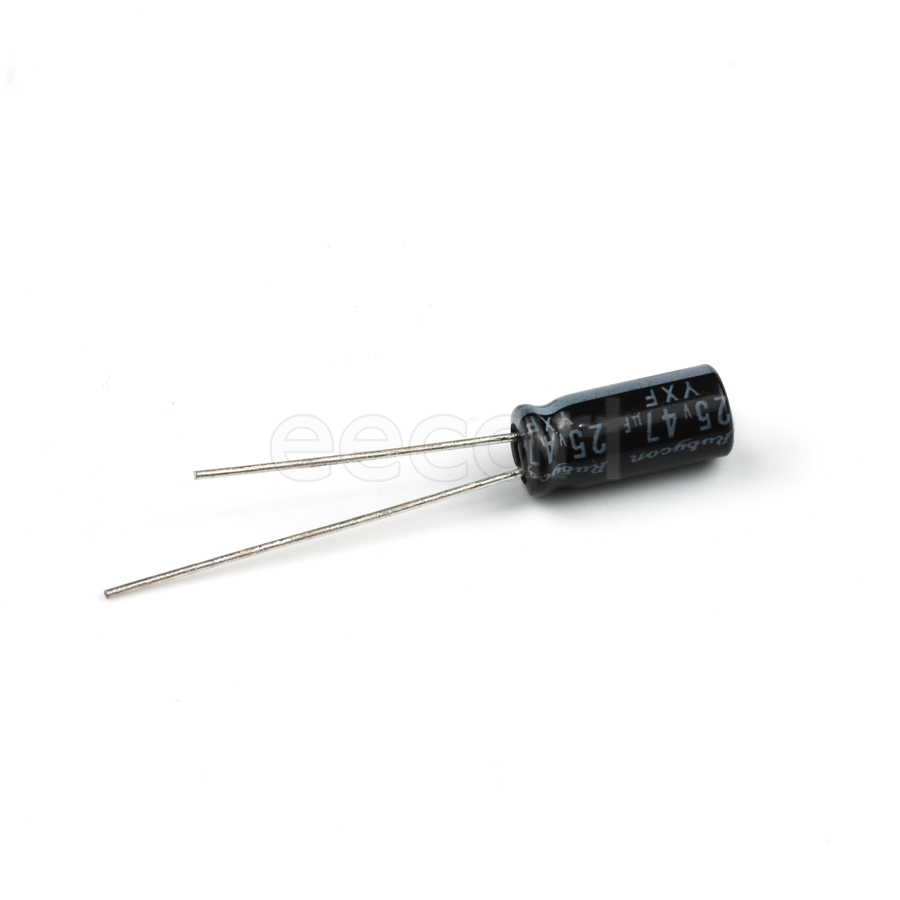

Aluminum Electrolytic Capacitors Radial,5.00mm×11.00mm Through Hole 47 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 5000 Hours |
| Ripple Current | 150 mA |
| Height - Seated (Max) | 12.5 mm |
| Termination | Radial |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 25 V |
| Number of Pins | 2 |
| Height | 11 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| Polarity | Polar |
| Lead Pitch | 2 mm |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Features | General Purpose |
| Impedance | 900 mΩ |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| RoHS | Compliant |
Stock: 1168
Distributors
pcbx
pcbxUnit Price$0.09446
Ext.Price$0.09446
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09446 | $0.09446 |
| 10 | $0.04723 | $0.47230 |
| 50 | $0.04308 | $2.15400 |
| 100 | $0.03929 | $3.92900 |
| 500 | $0.03296 | $16.48000 |
| 1000 | $0.02765 | $27.65000 |
| 3000 | $0.02649 | $79.47000 |
| 5000 | $0.02538 | $126.90000 |
| 10000 | $0.02411 | $241.10000 |
