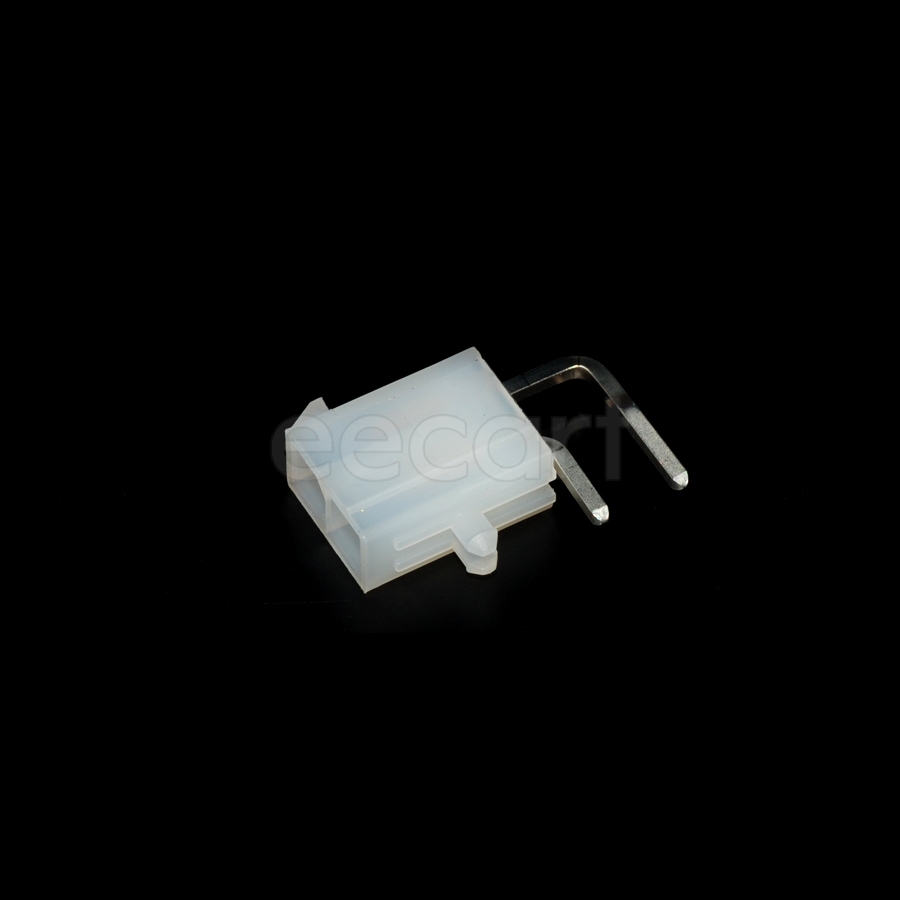

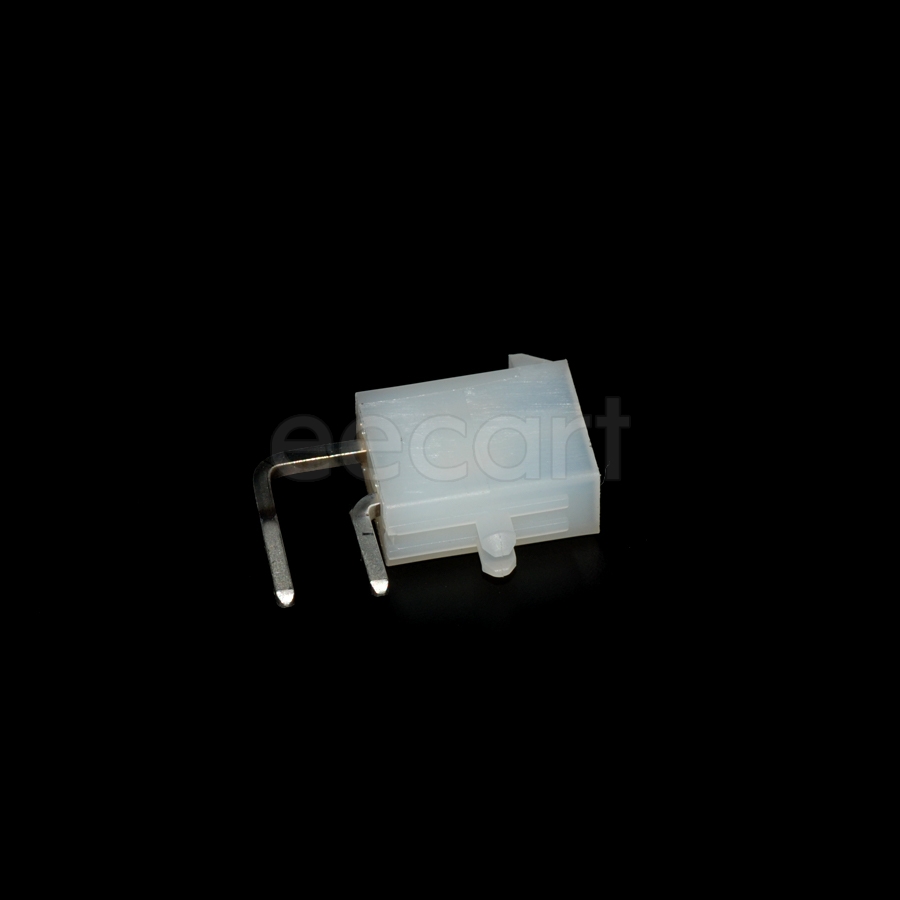

26-01-3114
Manufacturer:
Molex
Mfr.Part #:
26-01-3114
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 5.4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.65 mm |
| Material | Brass |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.93 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Gold, Nickel |
| Pitch | 4.2 mm |
| Number of Terminals | 2 |
| Current Rating | 13 A |
| Flammability Rating | UL94V-2 |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Number of Contacts | 2 |
| ELV | Compliant |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Connector Type | Header |
| Termination Post Length | 3.6 mm |
Stock: 2217
Distributors
pcbx
pcbxUnit Price$0.70703
Ext.Price$0.70703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70703 | $0.70703 |
| 10 | $0.56426 | $5.64260 |
| 25 | $0.55143 | $13.78575 |
| 50 | $0.54288 | $27.14400 |
| 100 | $0.46936 | $46.93600 |
| 300 | $0.44342 | $133.02600 |
| 500 | $0.41891 | $209.45500 |
| 1000 | $0.39241 | $392.41000 |
