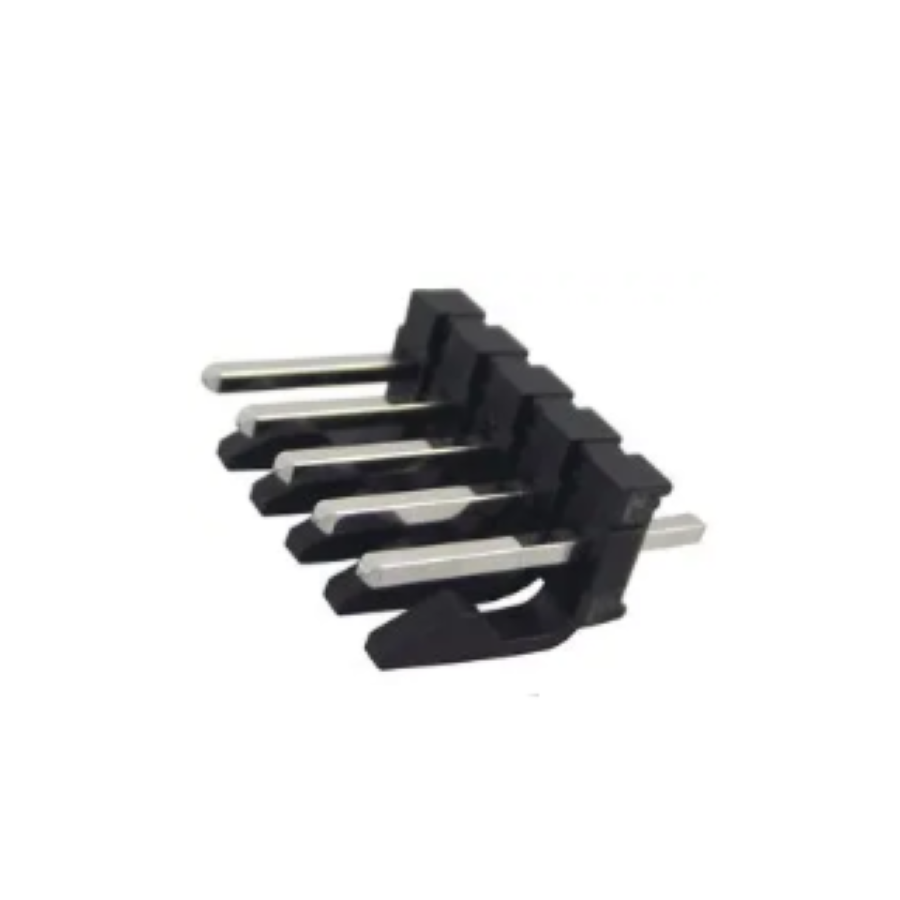

26-48-1065
Manufacturer:
Molex
Mfr.Part #:
26-48-1065
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:6 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 6 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header, Breakaway |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 11.43 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 4.37 mm |
Stock: 4371
Distributors
pcbx
pcbxUnit Price$0.45653
Ext.Price$0.45653
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45653 | $0.45653 |
| 10 | $0.31889 | $3.18890 |
| 25 | $0.31205 | $7.80125 |
| 50 | $0.29520 | $14.76000 |
| 100 | $0.27926 | $27.92600 |
| 300 | $0.26417 | $79.25100 |
| 500 | $0.25820 | $129.10000 |
| 1000 | $0.25237 | $252.37000 |
| 3000 | $0.24667 | $740.01000 |
| 5000 | $0.24109 | $1205.45000 |
