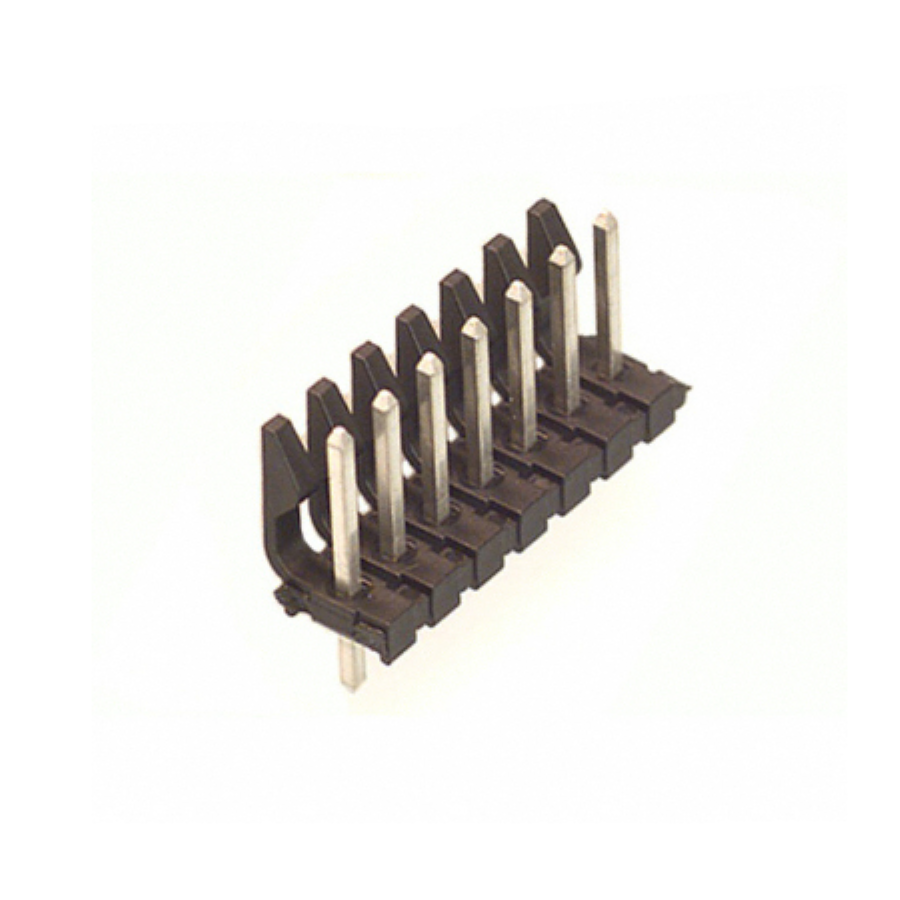

26-48-1075
Manufacturer:
Molex
Mfr.Part #:
26-48-1075
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:7 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 27.69 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 9.02 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 7 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 7 |
| Connector Type | Header, Breakaway |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| Mating Post Length | 11.43 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 4.37 mm |
Stock: 692
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.53347 | $5.33470 |
| 25 | $0.53262 | $13.31550 |
| 50 | $0.53177 | $26.58850 |
| 100 | $0.48817 | $48.81700 |
| 300 | $0.46951 | $140.85300 |
| 500 | $0.45156 | $225.78000 |
| 1000 | $0.43430 | $434.30000 |
