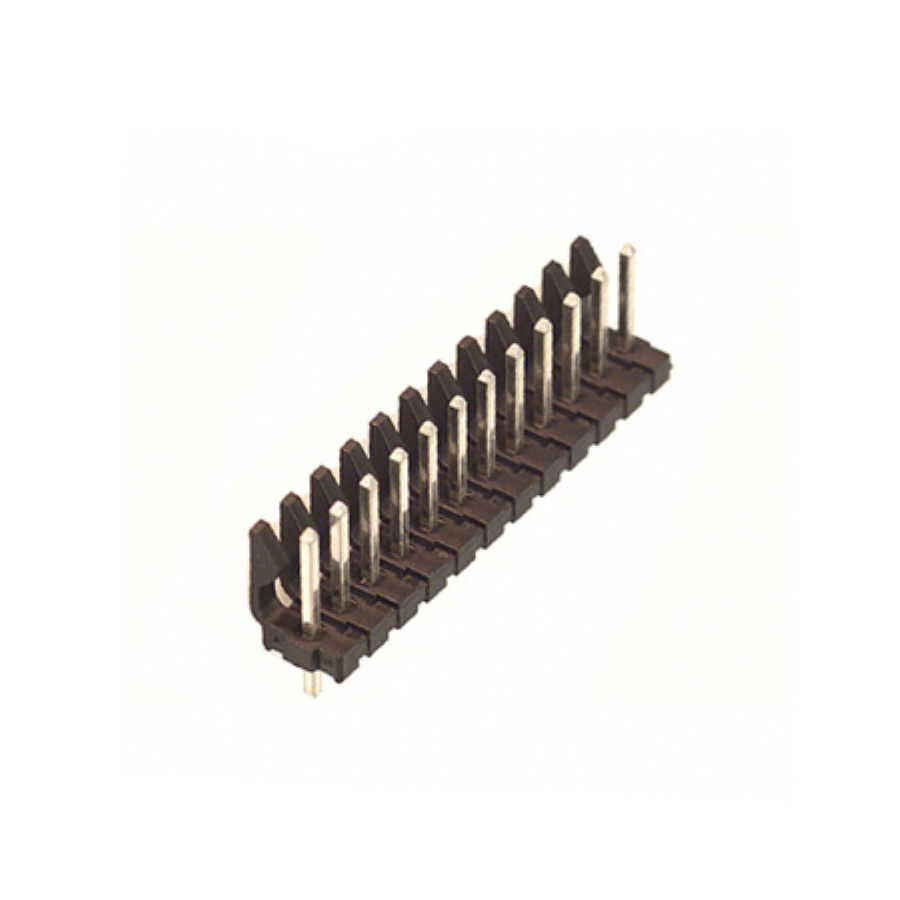

26-48-1125
Manufacturer:
Molex
Mfr.Part #:
26-48-1125
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:12 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 12 |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 12 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Hole Diameter | 1.7 mm |
| Number of Poles | 12 |
| Connector Type | Header, Breakaway |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 11.43 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 4.37 mm |
Stock: 1001
Distributors
pcbx
pcbxUnit Price$1.21999
Ext.Price$1.21999
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.21999 | $1.21999 |
| 10 | $1.06353 | $10.63530 |
| 25 | $1.01993 | $25.49825 |
| 50 | $0.99514 | $49.75700 |
| 100 | $0.95154 | $95.15400 |
| 300 | $0.86980 | $260.94000 |
| 500 | $0.79509 | $397.54500 |
| 1000 | $0.68822 | $688.22000 |
