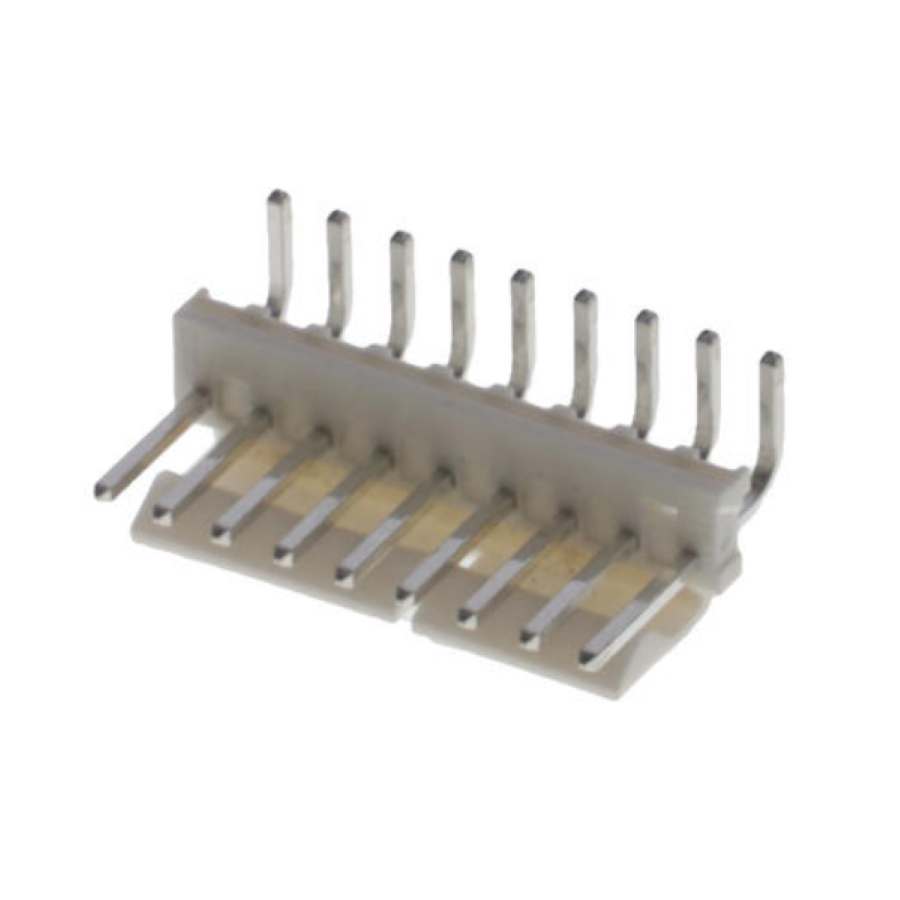

26-60-5070
Manufacturer:
Molex
Mfr.Part #:
26-60-5070
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:7 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 27.58 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Packaging | Bulk |
| Depth | 23.14 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Insulation Resistance | 50 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 7 |
| Connector Type | Header |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Housing Color | White |
| Plating | Tin |
| Mating Post Length | 11.43 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.96 mm |
Stock: 1478
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.43345 | $4.33450 |
| 25 | $0.41977 | $10.49425 |
| 50 | $0.41720 | $20.86000 |
| 100 | $0.39840 | $39.84000 |
| 300 | $0.36791 | $110.37300 |
| 500 | $0.33976 | $169.88000 |
| 1000 | $0.31376 | $313.76000 |
