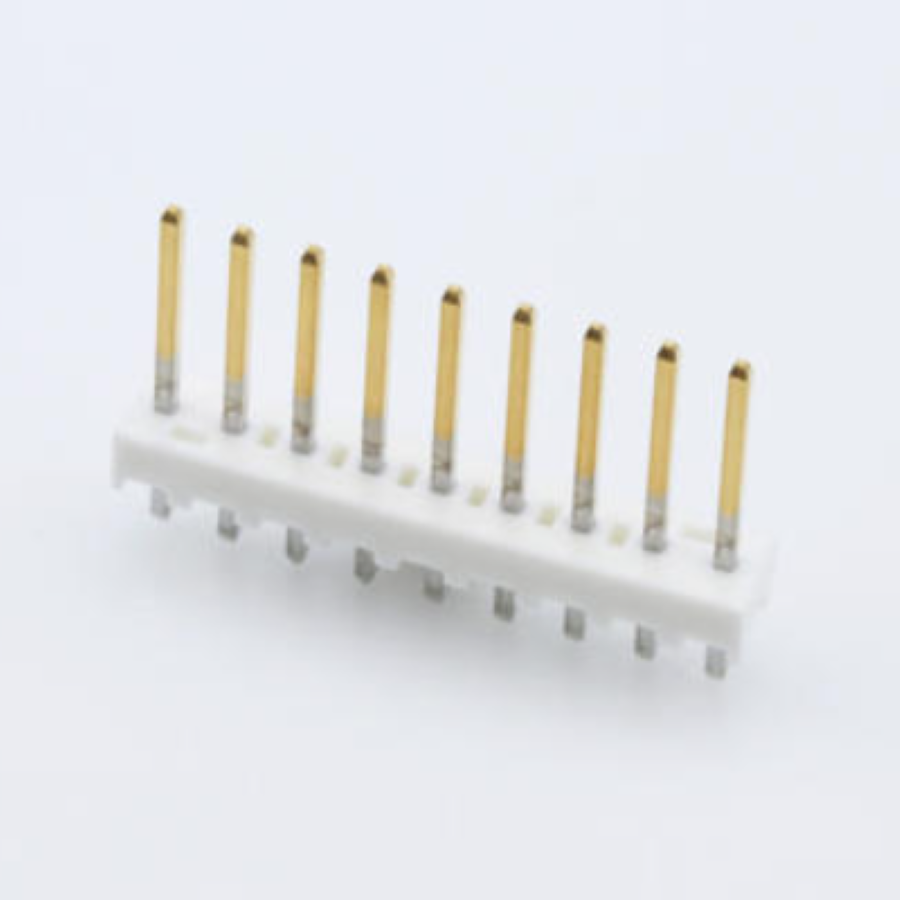

26-61-4030
Manufacturer:
Molex
Mfr.Part #:
26-61-4030
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 11.73 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 14.73 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 10.01 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Insulation Resistance | 50 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 11.43 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 4836
Distributors
pcbx
pcbxUnit Price$0.50099
Ext.Price$0.50099
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50099 | $0.50099 |
| 10 | $0.46166 | $4.61660 |
| 25 | $0.46080 | $11.52000 |
| 50 | $0.45653 | $22.82650 |
| 100 | $0.41720 | $41.72000 |
| 300 | $0.39435 | $118.30500 |
| 500 | $0.37275 | $186.37500 |
