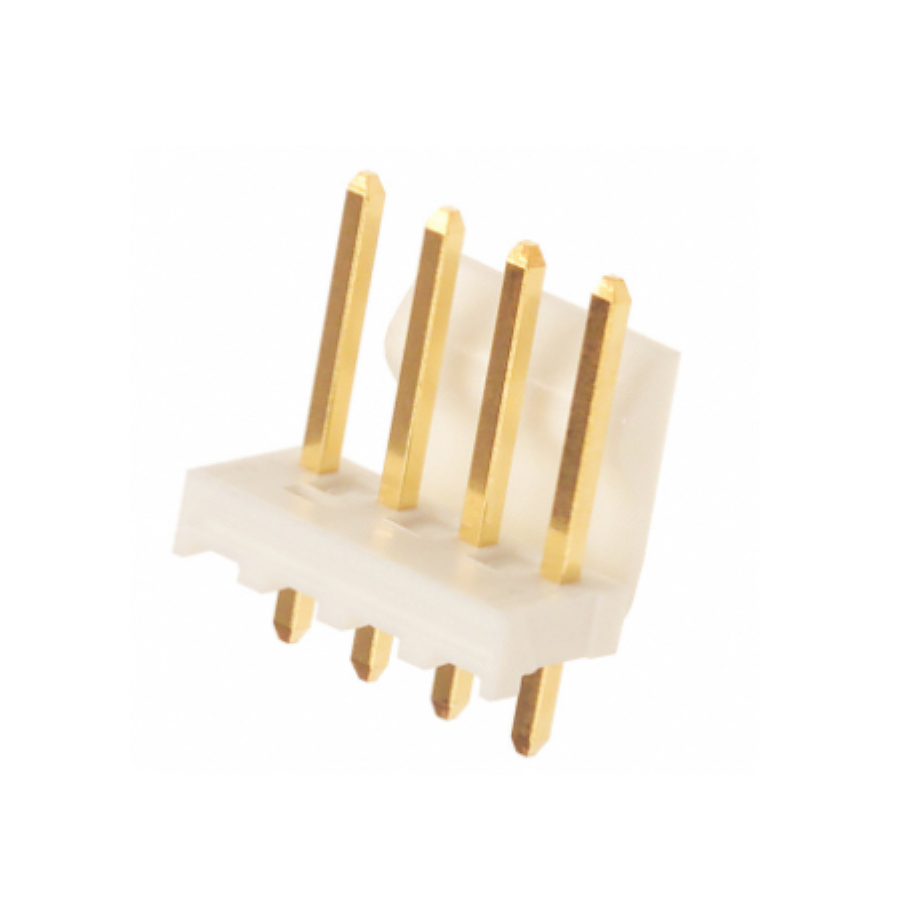

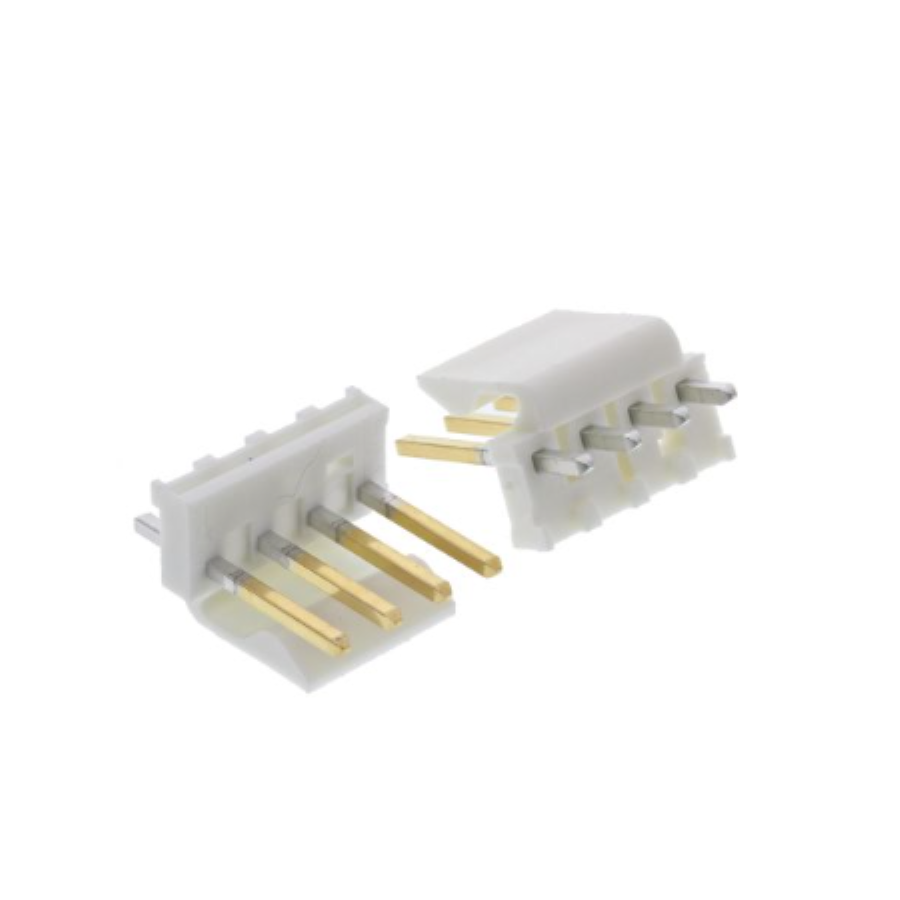

26-61-4040
Manufacturer:
Molex
Mfr.Part #:
26-61-4040
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 15.7 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 14.73 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 10.01 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Insulation Resistance | 50 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Mating Post Length | 11.43 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.56 mm |
Stock: 2631
Distributors
pcbx
pcbxUnit Price$0.57537
Ext.Price$0.57537
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57537 | $0.57537 |
| 10 | $0.51980 | $5.19800 |
| 25 | $0.51723 | $12.93075 |
| 50 | $0.51467 | $25.73350 |
| 100 | $0.46764 | $46.76400 |
| 300 | $0.45332 | $135.99600 |
| 500 | $0.43943 | $219.71500 |
| 1000 | $0.43003 | $430.03000 |
