26604040
Manufacturer:
Molex
Mfr.Part #:
26604040
Datasheet:
Description:

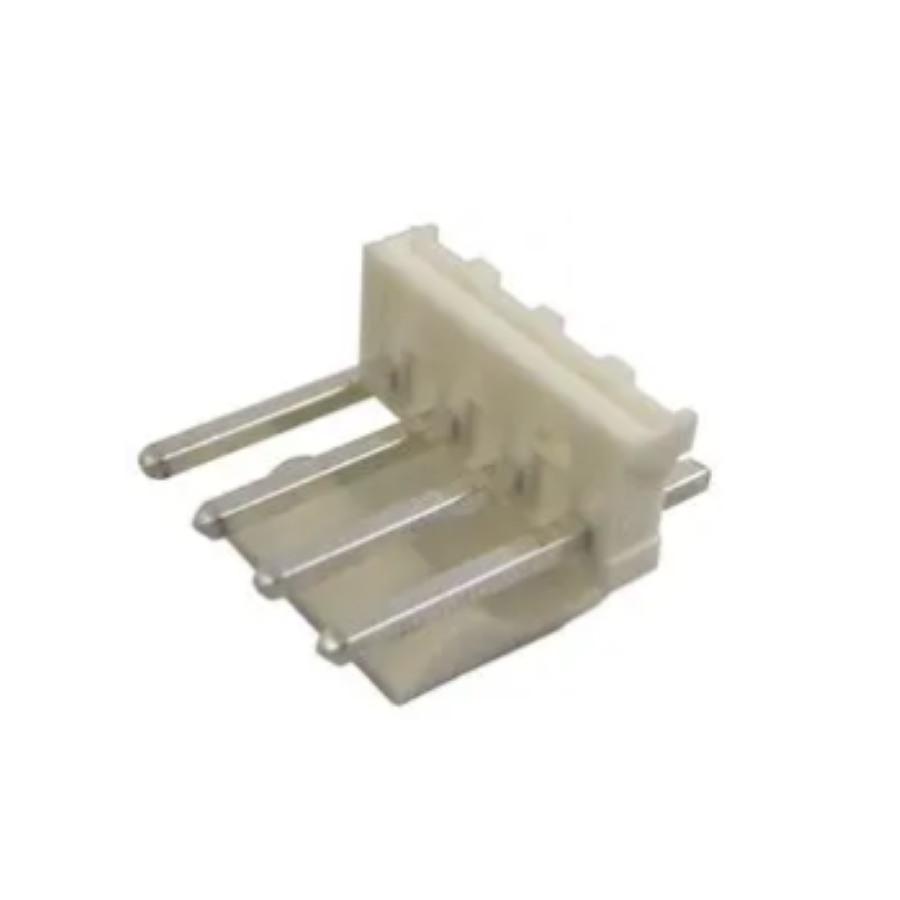

Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 15.7 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 14.73 mm |
| Material | Polyester |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 10.01 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 6 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 868
Distributors
pcbx
pcbxUnit Price$0.29155
Ext.Price$0.29155
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29155 | $0.29155 |
| 10 | $0.26330 | $2.63300 |
| 50 | $0.23779 | $11.88950 |
| 100 | $0.21735 | $21.73500 |
| 500 | $0.19866 | $99.33000 |
| 1000 | $0.18158 | $181.58000 |
| 3000 | $0.16597 | $497.91000 |
| 5000 | $0.15170 | $758.50000 |
