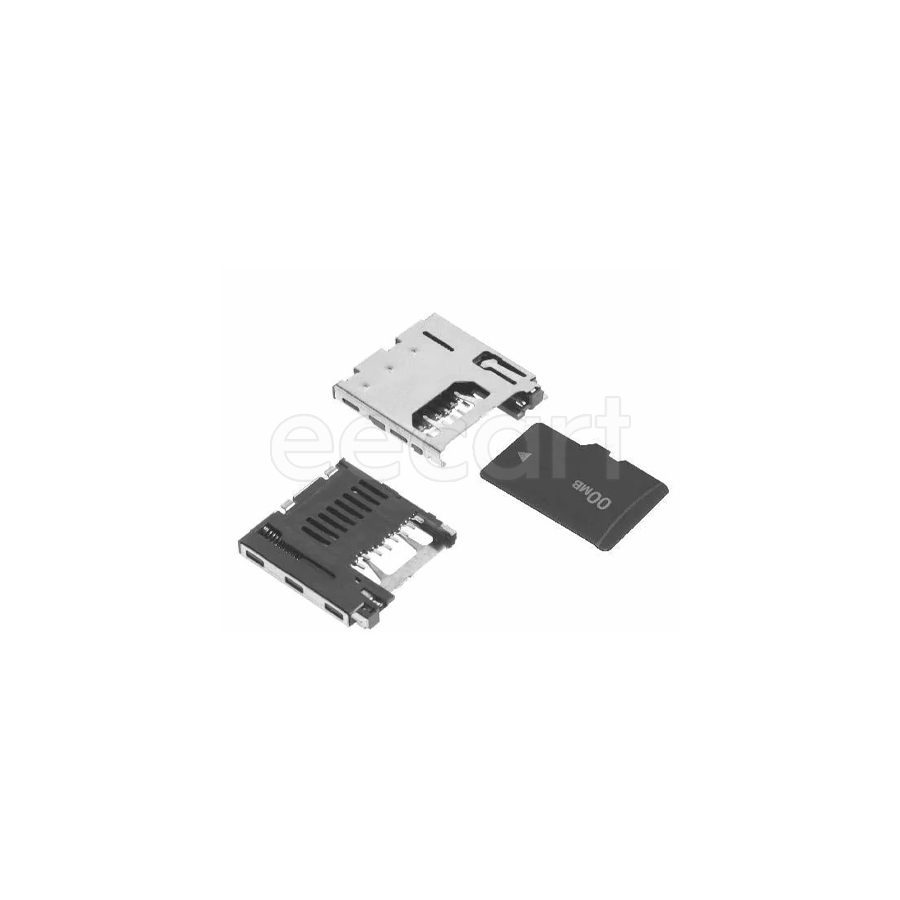

2908-05WB-MG
Manufacturer:
3M
Mfr.Part #:
2908-05WB-MG
Datasheet:
Description:
Memory Connectors SMD/SMT Number of Positions:8 Connector, Socket
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Width | 1.85 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 2 mm |
| Packaging | Reel |
| Depth | 15.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Contact Plating | Gold, Silver |
| Features | Shielded |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.1 mm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Male |
| Number of Contacts | 8 |
| Body Material | Thermoplastic |
| Connector Type | Connector, Socket |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| RoHS | Compliant |
Stock: 22231
Distributors
pcbx
pcbxUnit Price$2.77209
Ext.Price$2.77209
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.77209 | $2.77209 |
| 10 | $2.35325 | $23.53250 |
| 25 | $2.20569 | $55.14225 |
| 50 | $2.10033 | $105.01650 |
| 100 | $1.99997 | $199.99700 |
| 300 | $1.91904 | $575.71200 |
| 500 | $1.84140 | $920.70000 |
| 1000 | $1.70013 | $1700.13000 |
