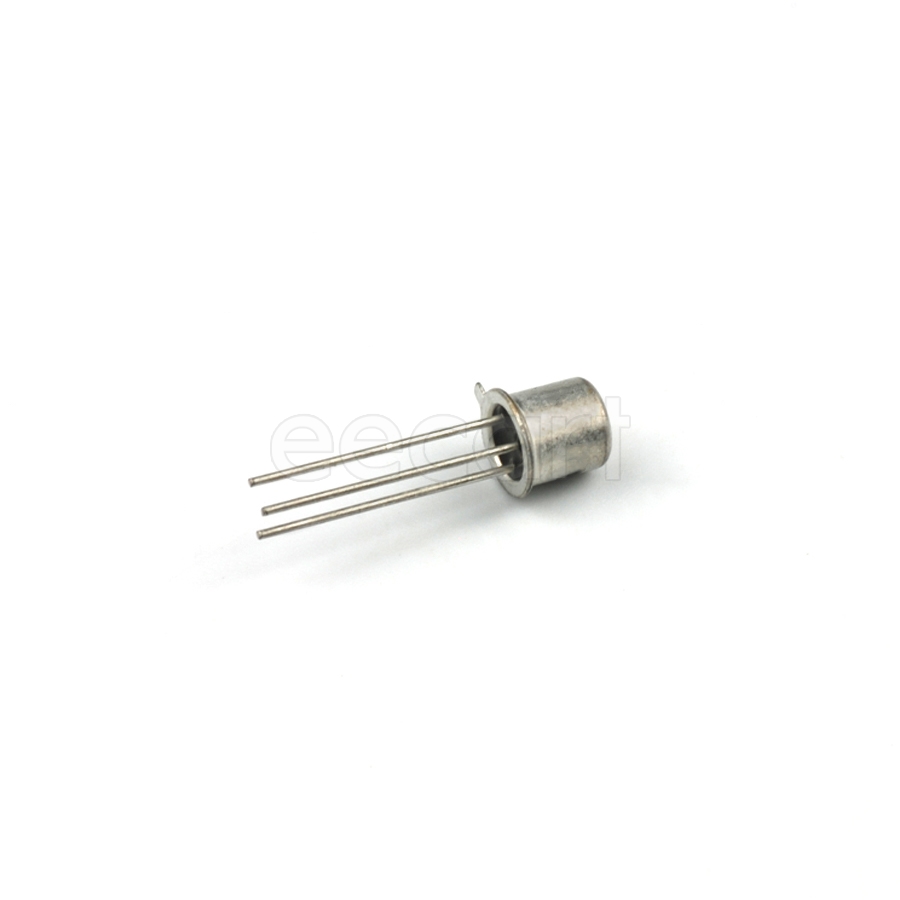

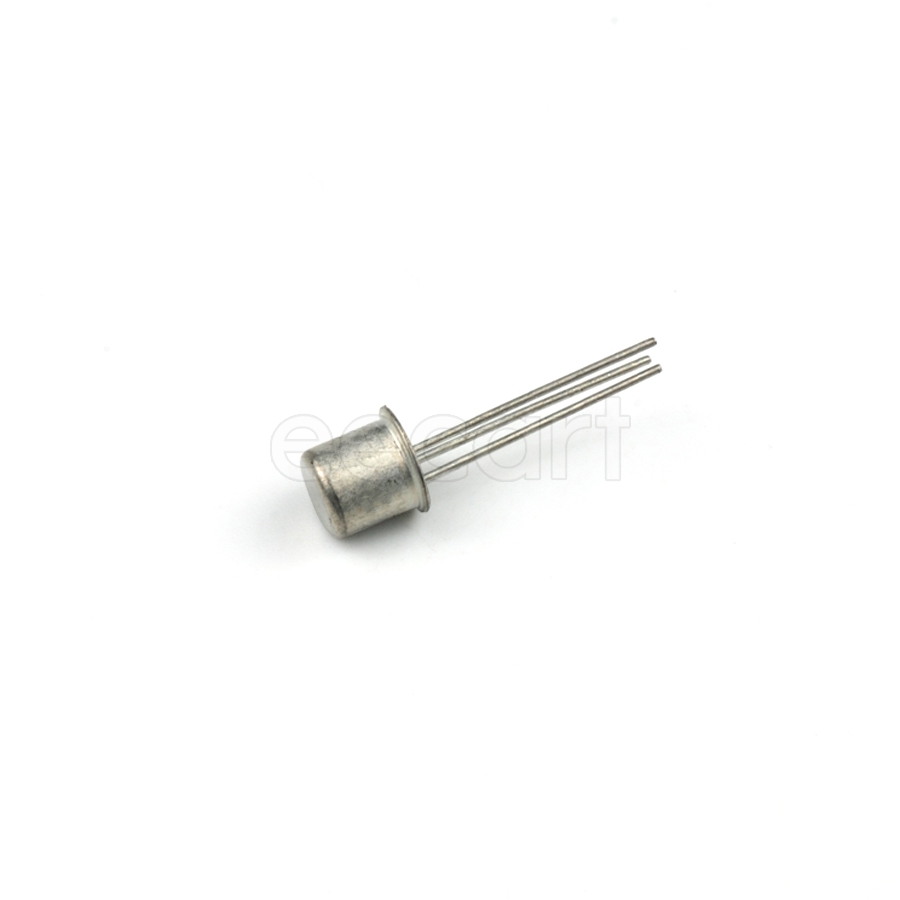

2N2222A
Manufacturer:
STMicroelectronics
Mfr.Part #:
2N2222A
Datasheet:
Description:
BJTs TO-18-3 Through Hole NPN 500 mW Collector Base Voltage (VCBO):75 V Collector Emitter Voltage (VCEO):50 V Emitter Base Voltage (VEBO):6 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 75 V |
| Length | 5.8 mm |
| Width | 5.8 mm |
| Max Operating Temperature | 200 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 5.3 mm |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| REACH SVHC | No SVHC |
| Frequency | 300 MHz |
| Type | Switch |
| Number of Elements | 1 |
| Current Rating | 600 mA |
| Max Power Dissipation | 500 mW |
| Power Dissipation | 500 mW |
| Max Collector Current | 600 mA |
| Collector Emitter Breakdown Voltage | 40 V |
| Transition Frequency | 300 MHz |
| Element Configuration | Single |
| Max Frequency | 300 MHz |
| Collector Emitter Voltage (VCEO) | 50 V |
| Gain Bandwidth Product | 300 MHz |
| Collector Base Voltage (VCBO) | 75 V |
| Collector Emitter Saturation Voltage | 300 mV |
| Emitter Base Voltage (VEBO) | 6 V |
| hFE Min | 40 |
| Max Cutoff Collector Current | 10 nA |
| Transistor Type | NPN |
