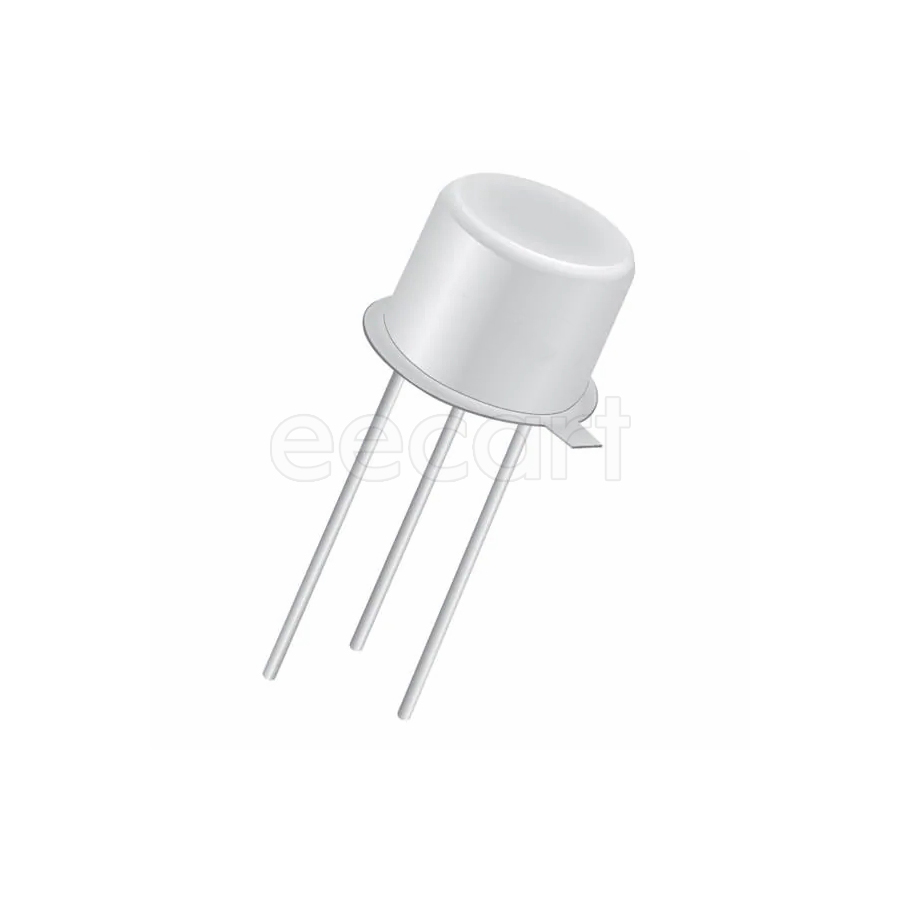

2N3440
Manufacturer:
STMicroelectronics
Mfr.Part #:
2N3440
Datasheet:
Description:
BJTs TO-39-3 Through Hole NPN 10 W Collector Base Voltage (VCBO):450 V Collector Emitter Voltage (VCEO):250 V Emitter Base Voltage (VEBO):7 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Length | 9.4 mm |
| Width | 9.4 mm |
| Diameter | 9.4 mm |
| Max Operating Temperature | 200 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 6.6 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| Voltage | 250 V |
| REACH SVHC | No SVHC |
| Weight | 4.535924 g |
| Frequency | 15 MHz |
| Number of Elements | 1 |
| Current | 1 A |
| Current Rating | 1 A |
| Max Power Dissipation | 10 W |
| Power Dissipation | 10 W |
| Max Collector Current | 1 A |
| Collector Emitter Breakdown Voltage | 250 V |
| Transition Frequency | 15 MHz |
| Element Configuration | Single |
| Max Frequency | 15 MHz |
| Collector Emitter Voltage (VCEO) | 250 V |
| Gain Bandwidth Product | 15 MHz |
| Collector Base Voltage (VCBO) | 450 V |
| Collector Emitter Saturation Voltage | 500 mV |
| Emitter Base Voltage (VEBO) | 7 V |
| hFE Min | 40 |
| Max Cutoff Collector Current | 50 µA |
| Transistor Type | NPN |
