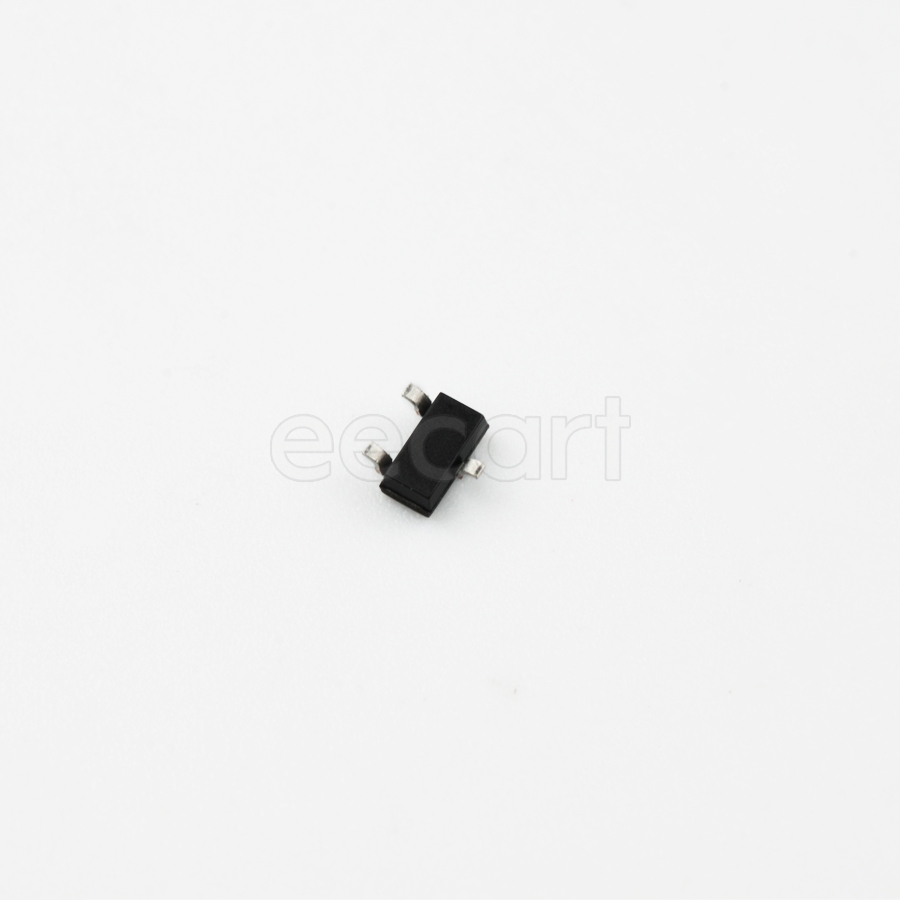

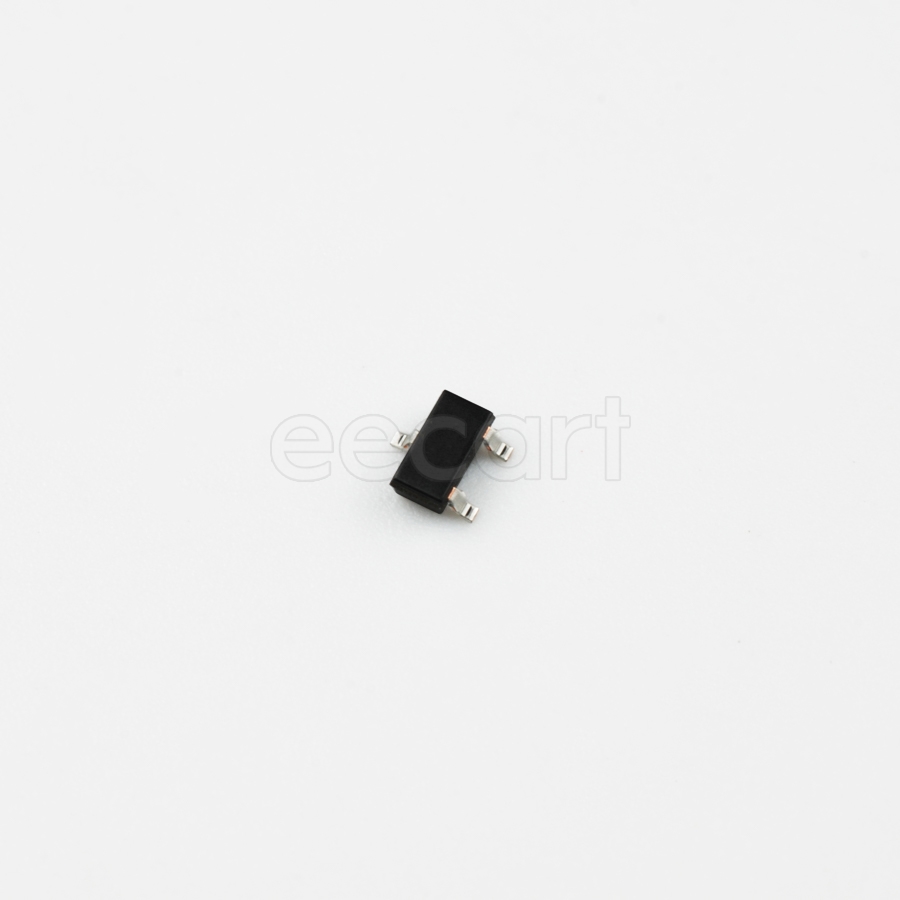

2SC2712-Y,LF
Manufacturer:
Toshiba
Mfr.Part #:
2SC2712-Y,LF
Datasheet:
Description:
BJTs S-Mini SMD/SMT NPN 150 mW Collector Base Voltage (VCBO):60 V Collector Emitter Voltage (VCEO):50 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | NPN |
| Max Power Dissipation | 150 mW |
| Power Dissipation | 150 mW |
| Max Collector Current | 150 mA |
| Collector Emitter Breakdown Voltage | 50 V |
| Transition Frequency | 80 MHz |
| Continuous Collector Current | 150 mA |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 50 V |
| Max Breakdown Voltage | 50 V |
| Gain Bandwidth Product | 80 MHz |
| Collector Base Voltage (VCBO) | 60 V |
| Collector Emitter Saturation Voltage | 100 mV |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 70 |
| Schedule B | 8541210080 |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | NPN |
Stock: 57283
Distributors
pcbx
pcbxUnit Price$0.11285
Ext.Price$0.11285
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11285 | $0.11285 |
| 10 | $0.06694 | $0.66940 |
| 50 | $0.05295 | $2.64750 |
| 100 | $0.04189 | $4.18900 |
| 500 | $0.03069 | $15.34500 |
| 1000 | $0.02693 | $26.93000 |
| 3000 | $0.02069 | $62.07000 |
| 5000 | $0.01765 | $88.25000 |
| 10000 | $0.01505 | $150.50000 |
