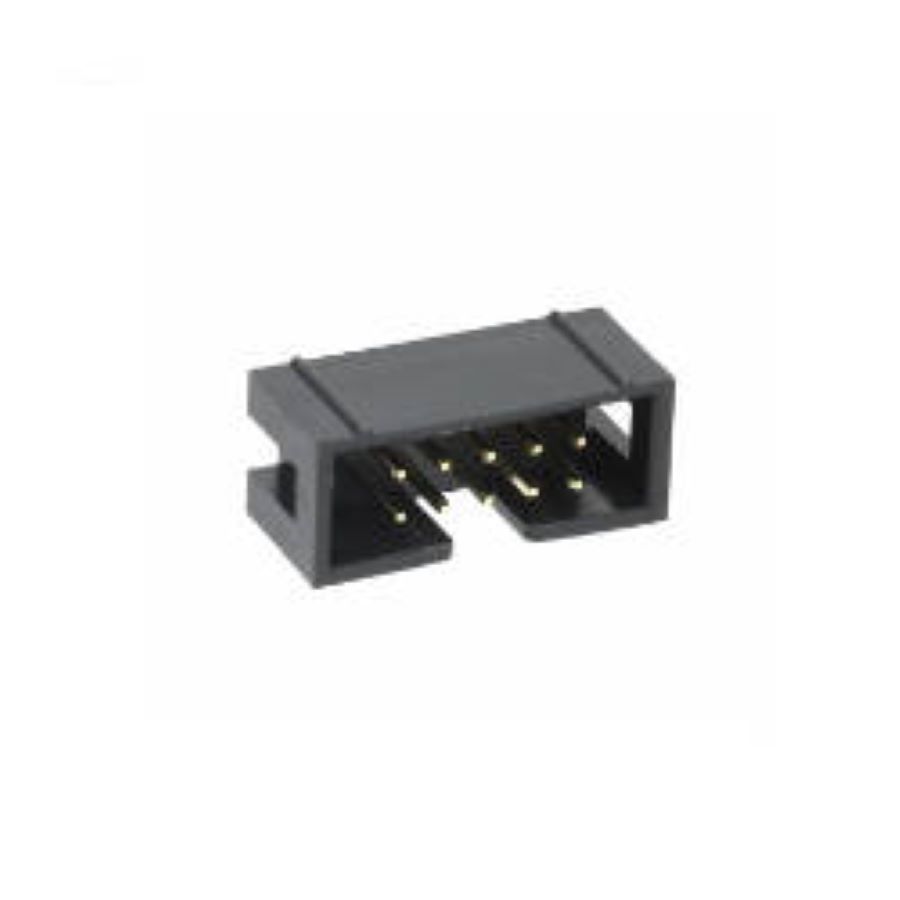

30310-6002HB
Manufacturer:
3M
Mfr.Part #:
30310-6002HB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.3 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 8.78 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.79 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Insulation Material | Polyester |
| Housing Material | Polyester |
| Cable Length | 3 m |
| Housing Color | Black |
| Sensing Distance | 3 m |
| Contact Mating Length | 5.9944 mm |
| Contact Gender | Male |
| Mating Post Length | 5.99 mm |
| Termination Post Length | 3 mm |
