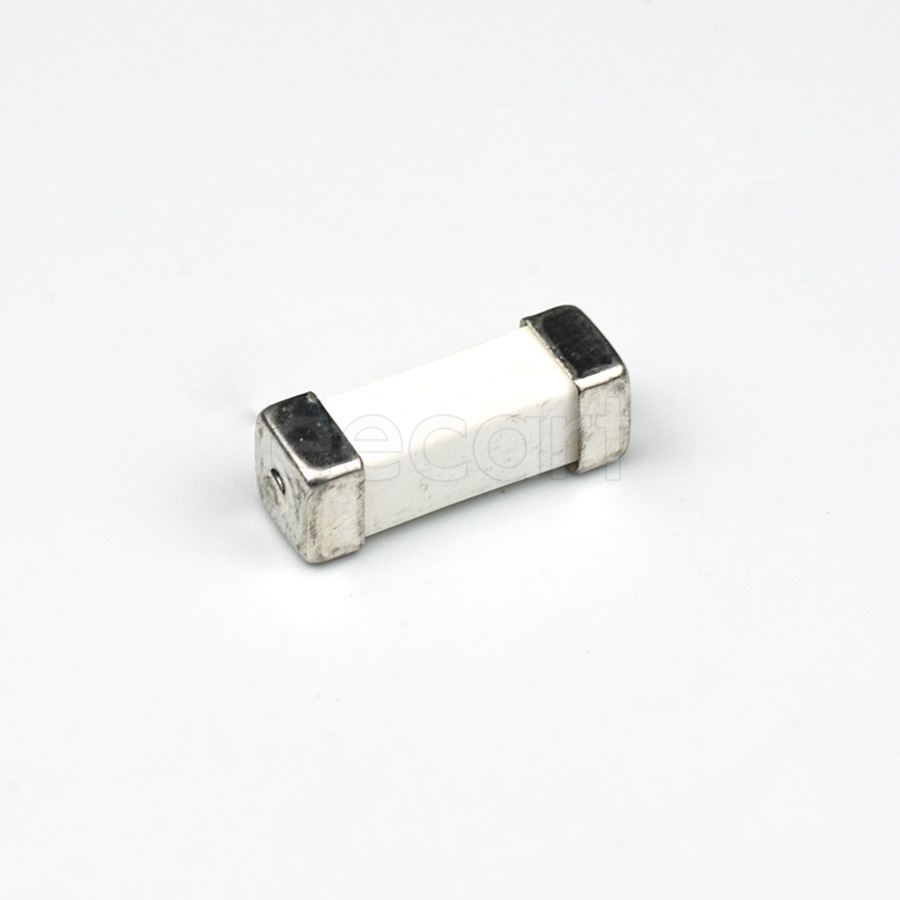

3403.0160.24
Manufacturer:
Schurter
Mfr.Part #:
3403.0160.24
Datasheet:
Description:
Fuses SMD/SMT Time Delay / Slow Blow 250 mA Voltage Rating (AC):250 V Voltage Rating (DC):125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 10.1 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 3 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 0.23 g |
| Contact Plating | Tin |
| Type | Time Delay / Slow Blow |
| Current Rating | 250 mA |
| Max Voltage Rating (DC) | 125 V |
| Approvals | CQC, KC, VDE, cULus, cURus |
| Max Power Dissipation | 500 mW |
| Power Dissipation | 500 mW |
| Body Material | Ceramic |
| Terminal Material | Tin |
| Housing Material | Ceramic |
| Max Voltage Rating (AC) | 250 V |
| Size | 3 mm x 10.1 mm |
